Product Details:
|
| Product Name: | 4U Rackmount Server Case | Product Size: | 483mm X 650mm X 176mm |
|---|---|---|---|
| Motherboard Support: | Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" X 9.6") | Drive Bay: | 24×hot Swap SATA/ SAS 6G Hard Drive Bay |
| Cooling Fan: | 4 X 80mm Middle Wind Wall, 2 X 80mm Back Board Fan | Switch: | Power Switch X 1, System Reboot X 1 |
| Fans Support: | 12CM*8 Cooling Storm Fans | Indicator Light: | Power Switch X 1, Hard Drive X 1, Network X 2 |
| Package: | Sigle Package/double Package | Weight (no Hard Drive): | 18 Kg(N.W.) 21.(G.W.) |
| High Light: | 4U 24 Bay Server Case,4U Rackmount Server Case,Length 483mm 4U Server Case |
||

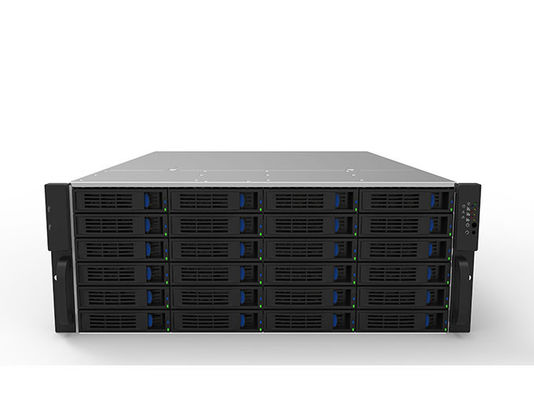

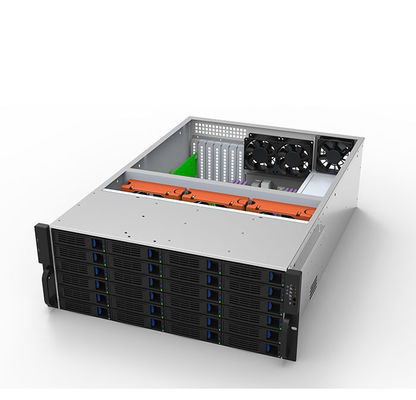

24 bay server case hot swap, 4U rackmount server case with 24 Hot-Swappable SATA/SAS Drive Bays
24 bay server case hot swap, 4U rackmount server case, server case with 24 Hot-Swappable SATA/SAS Drive Bays
The Chia platform was created by a company called Chia Network, which saw a valuation of $500 million in a recent investment round, and claims to be aiming for an IPO before the end of 2021.
Speciafication:
| Drive bay | 24×hot swap SATA/ SAS 6G hard drive bay |

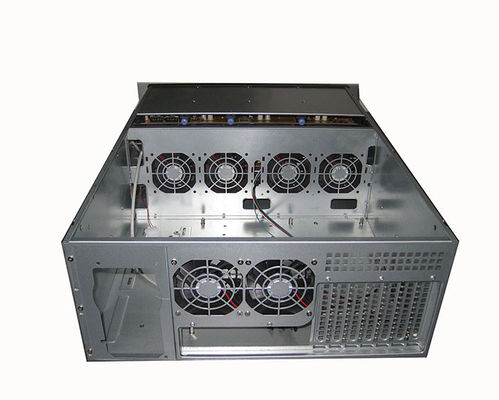

| Cooling fan | 4 x 80mm middle wind wall, 2 x 80mm back board fan |
| switch | power switch x 1, system reboot x 1 |
| Indicator light | power switch x 1, hard drive x 1, network X 2 |
| interface | 2 front board USB port, 6 inner SFF-8087 Mini SAS port, 12个 4-pin Redundant power interface |
| Motherboard compatibility | support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") |
| Optional power supply | standard ATX power, Mini Redundant power (H x W 5.91x3.39 inch) |
| Size (width x depth x height) | (483mm x 650mm x 176mm) |
| package | sigle package/double package |
| Weight (no hard drive) | 18 kg(N.W.) 21.(G.W.) |
| Ambient temperature | 0/40,32/104°F(Working)-20/60Ç,-4/140(non-working) |
| Relative humidity | 5% to 95%, Non-condensing |
|
Features |
| 1 • 4U rack design |
| 2 • 24X hot-swap SATA / SAS 6G hard drive bays |
| 3 • Six internal SFF-8087 mini-SAS cable supports up to twenty four 3.5 "or 2.5" SATA (I or II) or SAS hard disk; |
| 4 • The backplane is well ventilated with a horizontal installation |
| 5 • The LED indicator shows the power and operating status of each hard disk drive |
| 6 • Supports EEB (12 "x13"), CEB (12 "x10.5"), ATX (12 "x9.6"), MICRO ATX (9.6 "x 9.6") |
| 7 • Complies with EU RoHS regulations |
| 8 • Redundant 4-pin Molex power connector supports redundant power supplies |
| 9 • Two front USB ports |
| 10 • Smooth border prevents scratching your skin |
