Product Details:
|
| Product Name: | 24 Bays HDD Mining Case | Product Size: | 483mm X 650mm X 176mm |
|---|---|---|---|
| Motherboard Support: | Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" X 9.6") | HDD: | 24 HDDs |
| Drive Bay: | 24×hot Swap SATA/ SAS 6G Hard Drive Bay | Cooling Fan: | 4 X 80mm Middle Wind Wall, 2 X 80mm Back Board Fan |
| Switch: | Power Switch X 1, System Reboot X 1 | Fans Support: | 12CM*8 Cooling Storm Fans |
| Indicator Light: | Power Switch X 1, Hard Drive X 1, Network X 2 | Package: | Sigle Package/double Package |
| Weight (no Hard Drive): | 18 Kg(N.W.) 21.(G.W.) | ||
| High Light: | 4U 24 Bay Mining Rig Server Case,24 HDDs Mining Rig Server Case,4U 24 Bay Coin Mining Rig |
||

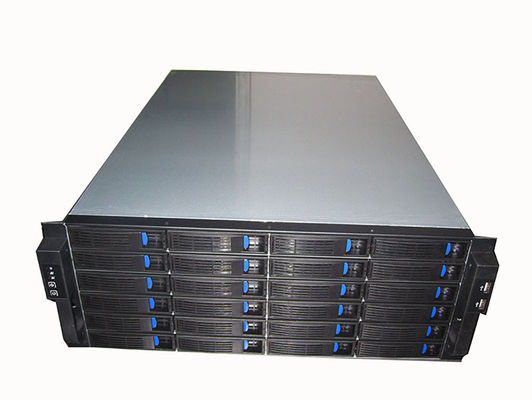

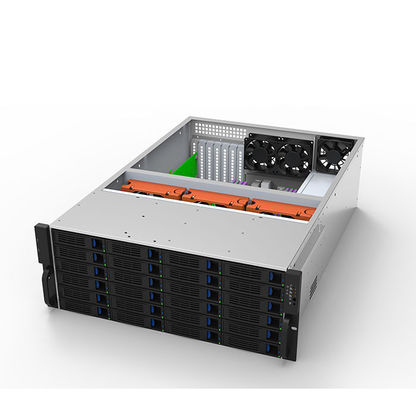

Hot selling 4U 24 bays server case hot swap for HDD mining Chia coin mining rig
24 bays server case, hot swap server case, HDD mining, Chia coin mining rig
Speciafication:
| Drive bay | 24×hot swap SATA/ SAS 6G hard drive bay |

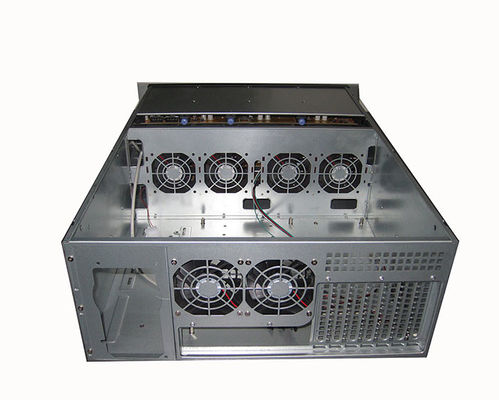

| Cooling fan | 4 x 80mm middle wind wall, 2 x 80mm back board fan |
| switch | power switch x 1, system reboot x 1 |
| Indicator light | power switch x 1, hard drive x 1, network X 2 |
| interface | 2 front board USB port, 6 inner SFF-8087 Mini SAS port, 12个 4-pin Redundant power interface |
| Motherboard compatibility | support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") |
| Optional power supply | standard ATX power, Mini Redundant power (H x W 5.91x3.39 inch) |
| Size (width x depth x height) | (483mm x 650mm x 176mm) |
| package | sigle package/double package |
| Weight (no hard drive) | 18 kg(N.W.) 21.(G.W.) |
| Ambient temperature | 0/40,32/104°F(Working)-20/60Ç,-4/140(non-working) |
| Relative humidity | 5% to 95%, Non-condensing |
|
Features |
| 1 • 4U rack design |
| 2 • 24X hot-swap SATA / SAS 6G hard drive bays |
| 3 • Six internal SFF-8087 mini-SAS cable supports up to twenty four 3.5 "or 2.5" SATA (I or II) or SAS hard disk; |
| 4 • The backplane is well ventilated with a horizontal installation |
| 5 • The LED indicator shows the power and operating status of each hard disk drive |
| 6 • Supports EEB (12 "x13"), CEB (12 "x10.5"), ATX (12 "x9.6"), MICRO ATX (9.6 "x 9.6") |
| 7 • Complies with EU RoHS regulations |
| 8 • Redundant 4-pin Molex power connector supports redundant power supplies |
| 9 • Two front USB ports |
| 10 • Smooth border prevents scratching your skin |
