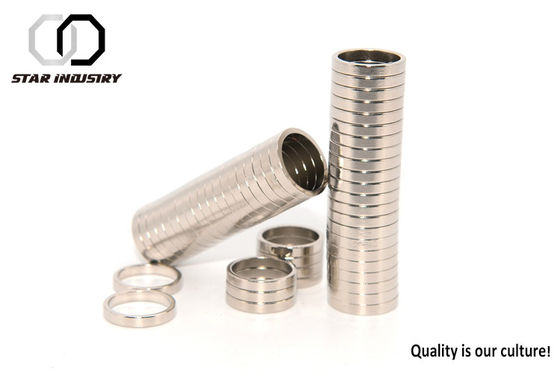

Multiple Small Ring Strongest Magnets , Sintered Ndfeb Magnet For Motor

Multiple Small Ring Strongest Magnets , Sintered Ndfeb Magnet For Motor
Multiple Small Ring Strongest Magnets , Sintered Ndfeb Magnet For Motor Multiple Small Ring Strongest Magnets , Sintered Ndfeb Magnet For Motor Multiple Small Ring Strongest Magnets , Sintered Ndfeb Magnet For Motor Multiple Small Ring Strongest Magnets , Sintered Ndfeb Magnet For Motor

Large Image :  Multiple Small Ring Strongest Magnets , Sintered Ndfeb Magnet For Motor

Product Details:
Place of Origin: China
Brand Name: STAR
Certification: RoHS, MSDS, Patent certificate, ISO9001, Quality Certificate
Model Number: S16-N52
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $0.01~$496.00
Packaging Details: Non-magnetism packing with Iron and foam protection, Export carton and pallet
Delivery Time: 5~35 days as per customer's project and quantity
Payment Terms: T/T, Western Union, MoneyGram, Paypal, L/C, WECHAT
Supply Ability: 1000 tons per month

Multiple Small Ring Strongest Magnets , Sintered Ndfeb Magnet For Motor

Description
Name: Sintered Ndfeb Magnet Shape: Ring
Surface Finish: Ni-Cu-Ni, Epoxy, Silver, Gold, Rubber Coated, Phosphatsing, Parylene, Custom OEM / ODM: OEM And ODM Magnet Assembly Solutions More Than 10 Years
Technology: Our R&D Engineers Support You Any Time Quality Assurance: Demagnetization Curve Report, Samples Testing
High Light:

super strong magnets

,

extremely powerful magnets

Multiple Small Ring Strongest Magnets , Sintered Ndfeb Magnet For Motor



Press Fitting



Advantages:



Magnets can be secured in position with high reliability.

The magnets inherent mechanical imperfections can be overcome specially for applications such as high speed or high rpm. Here, inherent cracks in the magnet could be masked.

Assembly can be automated.



Disadvantages:

Magnets must be manufactured to very tight tolerances.

Mating components must be manufactured to very tight tolerances.

Strong controls need to be in place to achieve the required interference fit, the required mechanical strength accordingly.



Production advantages:



When you know what you need, just please send your magnet specification and drawings for checking,

In case of new project, we can help you provide the design drawing for you after discussion



Our regular Grade for your reference: truly N28EH, N28UH, N30EH, N30UH, N33AH, N33EH, N33UH, N35, N38, N40, N42, N42H, N42SH, N45, N45H, N45SH, N48, N48M, N50, N50M, N52, more information please refer to below table.



Our Services:



1. Technical consult:

Our engineers will evaluate every project and give the best solution to you in short time, we have special team work for after sales services.



2. Design and Tool support:

More than 12 years professional factory production line for OEM and ODM magnet solutions, thousands of molding tools available for your customized magnet design, you think it, we make it for you.



3. Measuring of magnetic properties

Quality is our culture, all our products is coming with good quality finished and Demagnetization curve.



Multiple Small Ring Strongest Magnets , Sintered Ndfeb Magnet For Motor 0



4. Testing of customer’s material and magnet performance

We know most of customers have not much professional equipment for their magnet testing,

But do not worry, we can free of charge help you test if it is true.



When you buy magnets with a very lower price, or you think something is not good when use the magnets,

you can ask us for help, we will do the professional testing and let you know what you get.



5. Fast and safety shipping

We have worked with some experienced Express courier and Sea shipper more than 10 years, we can guarantee every process of your magnet order from materials, design, production, testing to delivery, we really do all care.





6. Suggestions and Comments

We love customers and love to hear from you whether it's feedback or questions about our Quality, Service, Market, etc, we will continue improving our performance and together we are stronger.





Grade    Remanece Coercive Force (Hcb) Intrinsic
Coercivity
     Max Energy Curie Coefficient TW
Tempreture
        Br          Hcj         (BH)max TC
T KGs KA/m KOe KA/m Koe KJ/m3 MGOe
N33 1.13-1.18 11.3-11.8 ≥836 ≥10.5 ≥955 ≥12 247-263 31-33 310 ≤80
N35 1.18-1.23 11.8-12.3 ≥868 ≥10.9 ≥955 ≥12 263-287 33-36 310 ≤80
N38 1.22-1.28 12.2-12.8 ≥899 ≥11.3 ≥955 ≥12 287-310 36-39 310 ≤80
N40 1.26-1.31 12.6-13.1 ≥923 ≥11.6 ≥955 ≥12 302-326 38-41 310 ≤80
N42 1.28-1.34 12.8-13.4 ≥923 ≥11.6 ≥955 ≥12 318-342 40-43 310 ≤80
N45 1.33-1.38 13.3-13.8 ≥923 ≥11.6 ≥955 ≥12 342-366 43-46 310 ≤80
N48 1.38-1.42 13.8-14.2 ≥923 ≥11.6 ≥955 ≥12 358-390 45-48 310 ≤80
N50 1.40-1.45 14.0-14.5 ≥836 ≥10.5 ≥876 ≥11 382-406 48-51 310 ≤80
N52 1.43-1.48 14.3-14.8 ≥796 ≥10.0 ≥876 ≥11 398-422 50-53 310 ≤80
N35M 1.17-1.22 11.7-12.2 ≥868 ≥10.9 ≥1114 ≥14 263-287 33-36 320 ≤100
N38M 1.22-1.25 12.2-12.5 ≥899 ≥11.3 ≥1114 ≥14 287-310 36-39 320 ≤100
N40M 1.25-1.28 12.5-12.8 ≥923 ≥11.6 ≥1114 ≥14 302-326 38-41 320 ≤100
N42M 1.28-1.32 12.8-13.2 ≥955 ≥12.0 ≥1114 ≥14 318-342 40-43 320 ≤100
N45M 1.32-1.38 13.2-13.8 ≥995 ≥12.5 ≥1114 ≥14 342-366 43-46 320 ≤100
N48M 1.36-1.43 13.6-14.3 ≥1027 ≥12.9 ≥1114 ≥14 366-390 46-49 320 ≤100
N50M 1.40-1.45 14.0-14.5 ≥1033 ≥13.0 ≥1114 ≥14 382-406 48-51 320 ≤100
N33H 1.14-1.19 11.4-11.9 ≥836 ≥10.5 ≥1353 ≥17 247-270 31-34 330 ≤120
N35H 1.17-1.22 11.7-12.2 ≥868 ≥10.9 ≥1353 ≥17 263-287 33-36 330 ≤120
N38H 1.22-1.25 12.2-12.5 ≥899 ≥11.3 ≥1353 ≥17 287-310 36-39 330 ≤120
N40H 1.25-1.28 12.5-12.8 ≥923 ≥11.6 ≥1353 ≥17 302-326 38-41 330 ≤120
N42H 1.28-1.32 12.8-13.2 ≥955 ≥12.0 ≥1353 ≥17 318-342 40-43 330 ≤120
N45H 1.30-1.36 13.0-13.6 ≥963 ≥12.1 ≥1353 ≥17 326-358 43-46 330 ≤120
N48H 1.37-1.43 13.7-14.3 ≥995 ≥12.5 ≥1353 ≥17 366-390 46-49 330 ≤120
N30SH 1.08-1.13 10.8-11.3 ≥810 ≥10.2 ≥1592 ≥20 223-247 28-31 340 ≤150
N33SH 1.13-1.17 11.3-11.7 ≥844 ≥10.6 ≥1592 ≥20 247-271 31-34 340 ≤150
N35SH 1.17-1.22 11.7-12.2 ≥876 ≥11.0 ≥1592 ≥20 263-287 33-36 340 ≤150
N38SH 1.22-1.25 12.2-12.5 ≥907 ≥11.4 ≥1592 ≥20 287-310 36-39 340 ≤150
N40SH 1.25-1.28 12.5-12.8 ≥939 ≥11.8 ≥1592 ≥20 302-326 38-41 340 ≤150
N42SH 1.28-1.32 12.8-13.2 ≥987 ≥12.4 ≥1592 ≥20 318-342 40-43 340 ≤150
N45SH 1.32-1.38 13.2-13.8 ≥1003 ≥12.6 ≥1592 ≥20 342-366 43-46 340 ≤150
N28UH 1.02-1.08 10.2-10.8 ≥764 ≥9.60 ≥1990 ≥25 207-231 26-29 350 ≤180
N30UH 1.08-1.13 10.8-11.3 ≥812 ≥10.2 ≥1990 ≥25 223-247 28-31 350 ≤180
N33UH 1.13-1.17 11.3-11.7 ≥852 ≥10.7 ≥1990 ≥25 247-271 31-34 350 ≤180
N35UH 1.18-1.22 11.8-12.2 ≥860 ≥10.8 ≥1990 ≥25 263-287 33-36 350 ≤180
N38UH 1.22-1.25 12.2-12.5 ≥876 ≥11.0 ≥1990 ≥25 287-310 36-39 350 ≤180
N40UH 1.25-1.28 12.5-12.8 ≥899 ≥11.3 ≥1990 ≥25 302-326 38-41 350 ≤180
N28EH 1.04-1.09 10.4-10.9 ≥780 ≥9.80 ≥2388 ≥30 207-231 26-29 380 ≤200
N30EH 1.08-1.13 10.8-11.3 ≥812 ≥10.2 ≥2388 ≥30 223-247 28-31 380 ≤200
N33EH 1.13-1.17 11.3-11.7 ≥836 ≥10.5 ≥2388 ≥30 247-271 31-34 380 ≤200
N35EH 1.17-1.22 11.7-12.2 ≥876 ≥11.0 ≥2388 ≥30 263-287 33-36 380 ≤200
N38EH 1.22-1.29 12.2-12.9 ≥915 ≥11.5 ≥2388 ≥30 287-318 36-40 380 ≤200
N30AH 1.08-1.15 10.8-11.5 ≥804 ≥10.1 ≥2786 ≥35 223-255 28-32 380 ≤230
N33AH 1.14-1.21 11.4-12.1 ≥852 ≥10.7 ≥2786 ≥35 247-279 31-35 380 ≤230
NdFeB Surface coating: Zinc plated Ni-Cu-Ni plated Silver plated Nickel plated Aurum plated Epoxy coated Phosphatsing Parylene other coating
