Product Details:
|
| Raw Material: | Nd, Pr, Fe, Boron And Other Rare Metals | Hole: | Both Sides For Countersunk |
|---|---|---|---|
| Application: | Motorcycle | Sample: | Avaliable M8 CouterSunk Magnet |
| Size: | D1''*d0.36''*0.25 | ||
| High Light: | Nd Countersunk Hole Magnets,Nd Motorcycle Magnets,MSDS Countersunk Hole Magnets |
||

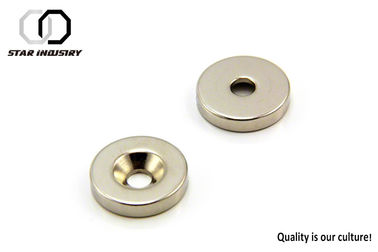

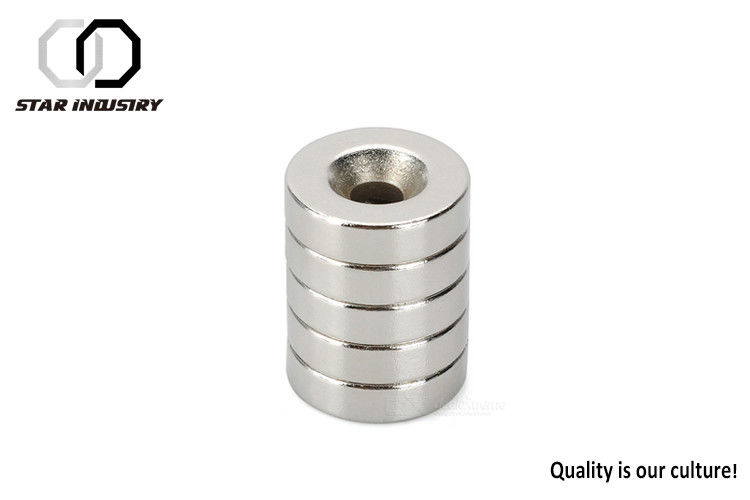

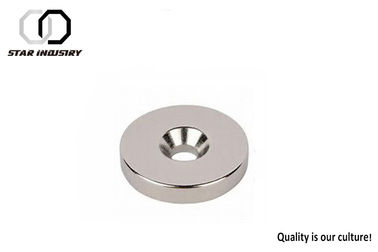

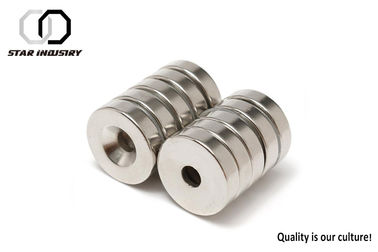

Super magnetic disc countersunk magnet , neodymium magnets with countersunk holes , where can i buy large magnets
Highlights:
1. Counter sunk hole tolerance control:
(1). in the process of grinding and cuting, controlled by high precise machines.
(2). after coating, we will measure the tolerance as per drawings based on AQL standard.
2. Non-magnetism protected packing:
(step 1). sorting the defect product after magnetized
(step 2). check the total quantity as per client order
(step 3). Vaccum packing based on magnet size and inner box
(step 4). Inner box packing and put the shipping label on the inner box
(step 5). Foam protection packing, and then iron packaging to finish the Non-magnetism protection
(step 6). Exporting carton with table tie and then pallet, post magnet Grade, specs, quantity or customer requirements
3. Customer feedback:
we will have the Customer Satisfaction Questionnaire from most of our customers.
| Grade | Remanece | Coercive Force (Hcb) | Intrinsic Coercivity |
Max Energy | Curie | Coefficient TW | ||||
| Tempreture | ||||||||||
| Br | Hcj | (BH)max | TC | |||||||
| T | KGs | KA/m | KOe | KA/m | Koe | KJ/m3 | MGOe | ℃ | ℃ | |
| N33 | 1.13-1.18 | 11.3-11.8 | ≥836 | ≥10.5 | ≥955 | ≥12 | 247-263 | 31-33 | 310 | ≤80 |
| N35 | 1.18-1.23 | 11.8-12.3 | ≥868 | ≥10.9 | ≥955 | ≥12 | 263-287 | 33-36 | 310 | ≤80 |
| N38 | 1.22-1.28 | 12.2-12.8 | ≥899 | ≥11.3 | ≥955 | ≥12 | 287-310 | 36-39 | 310 | ≤80 |
| N40 | 1.26-1.31 | 12.6-13.1 | ≥923 | ≥11.6 | ≥955 | ≥12 | 302-326 | 38-41 | 310 | ≤80 |
| N42 | 1.28-1.34 | 12.8-13.4 | ≥923 | ≥11.6 | ≥955 | ≥12 | 318-342 | 40-43 | 310 | ≤80 |
| N45 | 1.33-1.38 | 13.3-13.8 | ≥923 | ≥11.6 | ≥955 | ≥12 | 342-366 | 43-46 | 310 | ≤80 |
| N48 | 1.38-1.42 | 13.8-14.2 | ≥923 | ≥11.6 | ≥955 | ≥12 | 358-390 | 45-48 | 310 | ≤80 |
| N50 | 1.40-1.45 | 14.0-14.5 | ≥836 | ≥10.5 | ≥876 | ≥11 | 382-406 | 48-51 | 310 | ≤80 |
| N52 | 1.43-1.48 | 14.3-14.8 | ≥796 | ≥10.0 | ≥876 | ≥11 | 398-422 | 50-53 | 310 | ≤80 |
| N35M | 1.17-1.22 | 11.7-12.2 | ≥868 | ≥10.9 | ≥1114 | ≥14 | 263-287 | 33-36 | 320 | ≤100 |
| N38M | 1.22-1.25 | 12.2-12.5 | ≥899 | ≥11.3 | ≥1114 | ≥14 | 287-310 | 36-39 | 320 | ≤100 |
| N40M | 1.25-1.28 | 12.5-12.8 | ≥923 | ≥11.6 | ≥1114 | ≥14 | 302-326 | 38-41 | 320 | ≤100 |
| N42M | 1.28-1.32 | 12.8-13.2 | ≥955 | ≥12.0 | ≥1114 | ≥14 | 318-342 | 40-43 | 320 | ≤100 |
| N45M | 1.32-1.38 | 13.2-13.8 | ≥995 | ≥12.5 | ≥1114 | ≥14 | 342-366 | 43-46 | 320 | ≤100 |
| N48M | 1.36-1.43 | 13.6-14.3 | ≥1027 | ≥12.9 | ≥1114 | ≥14 | 366-390 | 46-49 | 320 | ≤100 |
| N50M | 1.40-1.45 | 14.0-14.5 | ≥1033 | ≥13.0 | ≥1114 | ≥14 | 382-406 | 48-51 | 320 | ≤100 |
| N33H | 1.14-1.19 | 11.4-11.9 | ≥836 | ≥10.5 | ≥1353 | ≥17 | 247-270 | 31-34 | 330 | ≤120 |
| N35H | 1.17-1.22 | 11.7-12.2 | ≥868 | ≥10.9 | ≥1353 | ≥17 | 263-287 | 33-36 | 330 | ≤120 |
| N38H | 1.22-1.25 | 12.2-12.5 | ≥899 | ≥11.3 | ≥1353 | ≥17 | 287-310 | 36-39 | 330 | ≤120 |
| N40H | 1.25-1.28 | 12.5-12.8 | ≥923 | ≥11.6 | ≥1353 | ≥17 | 302-326 | 38-41 | 330 | ≤120 |
| N42H | 1.28-1.32 | 12.8-13.2 | ≥955 | ≥12.0 | ≥1353 | ≥17 | 318-342 | 40-43 | 330 | ≤120 |
| N45H | 1.30-1.36 | 13.0-13.6 | ≥963 | ≥12.1 | ≥1353 | ≥17 | 326-358 | 43-46 | 330 | ≤120 |
| N48H | 1.37-1.43 | 13.7-14.3 | ≥995 | ≥12.5 | ≥1353 | ≥17 | 366-390 | 46-49 | 330 | ≤120 |
| N30SH | 1.08-1.13 | 10.8-11.3 | ≥810 | ≥10.2 | ≥1592 | ≥20 | 223-247 | 28-31 | 340 | ≤150 |
| N33SH | 1.13-1.17 | 11.3-11.7 | ≥844 | ≥10.6 | ≥1592 | ≥20 | 247-271 | 31-34 | 340 | ≤150 |
| N35SH | 1.17-1.22 | 11.7-12.2 | ≥876 | ≥11.0 | ≥1592 | ≥20 | 263-287 | 33-36 | 340 | ≤150 |
| N38SH | 1.22-1.25 | 12.2-12.5 | ≥907 | ≥11.4 | ≥1592 | ≥20 | 287-310 | 36-39 | 340 | ≤150 |
| N40SH | 1.25-1.28 | 12.5-12.8 | ≥939 | ≥11.8 | ≥1592 | ≥20 | 302-326 | 38-41 | 340 | ≤150 |
| N42SH | 1.28-1.32 | 12.8-13.2 | ≥987 | ≥12.4 | ≥1592 | ≥20 | 318-342 | 40-43 | 340 | ≤150 |
| N45SH | 1.32-1.38 | 13.2-13.8 | ≥1003 | ≥12.6 | ≥1592 | ≥20 | 342-366 | 43-46 | 340 | ≤150 |
| N28UH | 1.02-1.08 | 10.2-10.8 | ≥764 | ≥9.60 | ≥1990 | ≥25 | 207-231 | 26-29 | 350 | ≤180 |
| N30UH | 1.08-1.13 | 10.8-11.3 | ≥812 | ≥10.2 | ≥1990 | ≥25 | 223-247 | 28-31 | 350 | ≤180 |
| N33UH | 1.13-1.17 | 11.3-11.7 | ≥852 | ≥10.7 | ≥1990 | ≥25 | 247-271 | 31-34 | 350 | ≤180 |
| N35UH | 1.18-1.22 | 11.8-12.2 | ≥860 | ≥10.8 | ≥1990 | ≥25 | 263-287 | 33-36 | 350 | ≤180 |
| N38UH | 1.22-1.25 | 12.2-12.5 | ≥876 | ≥11.0 | ≥1990 | ≥25 | 287-310 | 36-39 | 350 | ≤180 |
| N40UH | 1.25-1.28 | 12.5-12.8 | ≥899 | ≥11.3 | ≥1990 | ≥25 | 302-326 | 38-41 | 350 | ≤180 |
| N28EH | 1.04-1.09 | 10.4-10.9 | ≥780 | ≥9.80 | ≥2388 | ≥30 | 207-231 | 26-29 | 380 | ≤200 |
| N30EH | 1.08-1.13 | 10.8-11.3 | ≥812 | ≥10.2 | ≥2388 | ≥30 | 223-247 | 28-31 | 380 | ≤200 |
| N33EH | 1.13-1.17 | 11.3-11.7 | ≥836 | ≥10.5 | ≥2388 | ≥30 | 247-271 | 31-34 | 380 | ≤200 |
| N35EH | 1.17-1.22 | 11.7-12.2 | ≥876 | ≥11.0 | ≥2388 | ≥30 | 263-287 | 33-36 | 380 | ≤200 |
| N38EH | 1.22-1.29 | 12.2-12.9 | ≥915 | ≥11.5 | ≥2388 | ≥30 | 287-318 | 36-40 | 380 | ≤200 |
| N30AH | 1.08-1.15 | 10.8-11.5 | ≥804 | ≥10.1 | ≥2786 | ≥35 | 223-255 | 28-32 | 380 | ≤230 |
| N33AH | 1.14-1.21 | 11.4-12.1 | ≥852 | ≥10.7 | ≥2786 | ≥35 | 247-279 | 31-35 | 380 | ≤230 |
| NdFeB Surface coating: | Zinc plated | Ni-Cu-Ni plated | Silver plated | Nickel plated | Aurum plated | Epoxy coated | Phosphatsing | Parylene | other coating | |
