Product Details:
|
| Material: | Aluminum, Cobalt And Nickle Alloy | Shape: | Disc, Ring |
|---|---|---|---|
| Grade: | ALNICO6 | Temprature: | 450~550℃ |
| OEM / ODM: | Provide OEM And ODM Magnet Assembly Solutions More Than 10 Years | Magnet Technology: | Our R&D Engineers Welcome You To Discuss Any Time |
| High Light: | high temp magnets,high heat magnets |
||

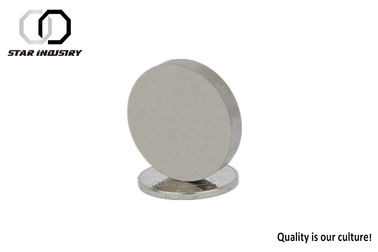

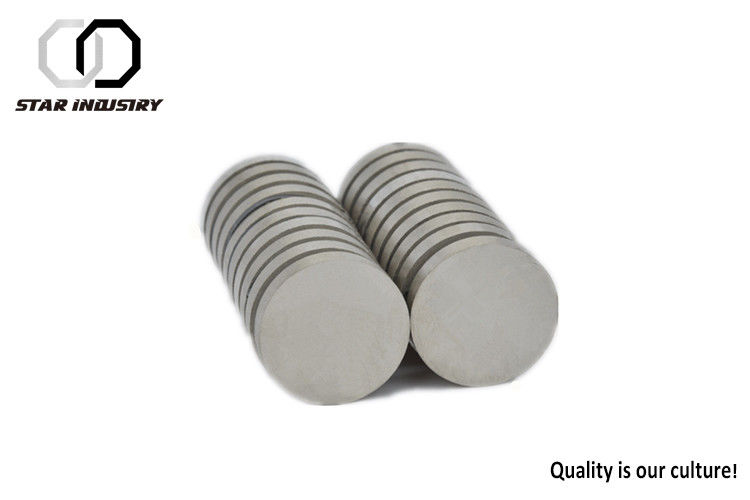

Eco friendly high temperature resistant dc motor magnet fender alnico v pickups
Alnico are easier to dispose of than rare earth magnets too. However, thermally treating to demagnetize can be expensive since the curie temperatures of Alnico are very high. Talk to your supplier to see if they want the magnets. Alnico magnets are high in nickel and cobalt content and there is a good chance that it could be recycled, in which case you could send the magnets to your magnet vendor and not have the problems associated with disposal
| Magnetic and Physical Properties of Cast Alnico Magnet | |||||||||||||
| Grades | Equivalent MMPA Class | Remanence | Coercive Force | Maximum Energy Product | Density | Reversible Temp. Coefficient | Reversible Temp. Coefficient | Curie Temp. | Temp. Coefficient | Remark | |||
| Br | Hcb | (BH)max | g/cm3 | α(Br) | α(Hcj) | TC | TW | ||||||
| mT | Gs | KA/m | Oe |
KJ/ m3 |
MGOe | %/℃ | %/℃ | ℃ | ℃ | ||||
| LN10 | ALNICO3 | 600 | 6000 | 40 | 500 | 10 | 1.2 | 6.9 | -0.03 | -0.02 | 810 | 450 | Isotropy |
| LNG13 | ALNICO2 | 700 | 7000 | 48 | 600 | 12.8 | 1.6 | 7.2 | -0.03 | +0.02 | 810 | 450 | |
| LNGT18 | ALNICO8 | 580 | 5800 | 100 | 1250 | 18 | 2.2 | 7.3 | -0.025 | +0.02 | 860 | 550 | |
| LNG37 | ALNICO5 | 1200 | 12000 | 48 | 600 | 37 | 4.65 | 7.3 | -0.02 | +0.02 | 850 | 525 | Anisotropy |
| LNG40 | ALNICO5 | 1250 | 12500 | 48 | 600 | 40 | 5 | 7.3 | -0.02 | +0.02 | 850 | 525 | |
| LNG44 | ALNICO5 | 1250 | 12500 | 52 | 650 | 44 | 5.5 | 7.3 | -0.02 | +0.02 | 850 | 525 | |
| LNG52 |
ALNIC05 DG |
1300 | 13000 | 56 | 700 | 52 | 6.5 | 7.3 | -0.02 | +0.02 | 850 | 525 | |
| LNG60 |
ALNICO5 -7 |
1350 | 13500 | 59 | 740 | 60 | 7.5 | 7.3 | -0.02 | +0.02 | 850 | 525 | |
| LNGT28 | ALNICO6 | 1000 | 10000 | 57.6 | 720 | 28 | 3.5 | 7.3 | -0.02 | +0.03 | 850 | 525 | |
| LNGT36J |
ALNICO8 HC |
700 | 7000 | 140 | 1750 | 36 | 4.5 | 7.3 | -0.025 | +0.02 | 860 | 550 | |
| LNGT38 | ALNICO8 | 800 | 8000 | 110 | 1380 | 38 | 4.75 | 7.3 | -0.025 | +0.02 | 860 | 550 | |
| LNGT40 | 820 | 8200 | 110 | 1380 | 40 | 5 | 7.3 | -0.025 | 860 | 550 | |||
| LNGT60 | ALNICO9 | 900 | 9000 | 110 | 1380 | 60 | 7.5 | 7.3 | -0.025 | +0.02 | 860 | 550 | |
| LNGT72 | 1050 | 10500 | 112 | 1400 | 72 | 9 | 7.3 | -0.025 | 860 | 550 | |||
Please read below information when have a alnico product order:
The Alnico Magnet contains the elements of Aluminum, Cobalt and Nickle Alloy and others, which can be made either by casting or sintering process.
As features of both hardness and high working temperature parameters, they are widely used in many different application with a wide range of magnetic properties. Meantime, an excellent corrosion resistance is also one of its features.
However, the most disadvantages point for this material is in low value of coercive force, which be possible to decrease the magnetic power during in use subject to using environment, we suggest you to discuss with us when ordering.

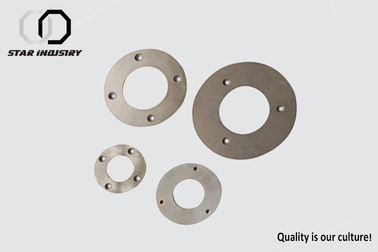

Different Shape
