Product Details:
|
| Material: | Aluminum, Cobalt And Nickle Alloy | Shape: | Customization Performance |
|---|---|---|---|
| Grade: | AlNiCo2, 3, 5, 6, AlNiCo9 | Temprature: | 450~550℃ |
| OEM / ODM: | Provide OEM And ODM Magnet Assembly Solutions More Than 10 Years | Magnet Technology: | Our R&D Engineers Welcome You To Discuss Any Time |
| Quality Assurance: | Free Samples Testing, Demagnetization Curve Report | ||
| High Light: | high temp magnets,heat resistant magnets |
||

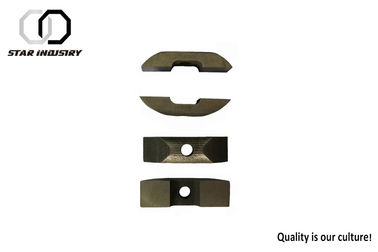

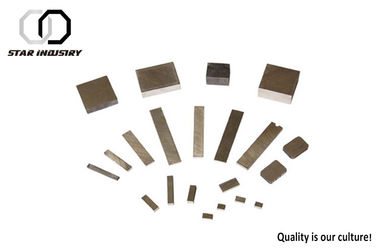

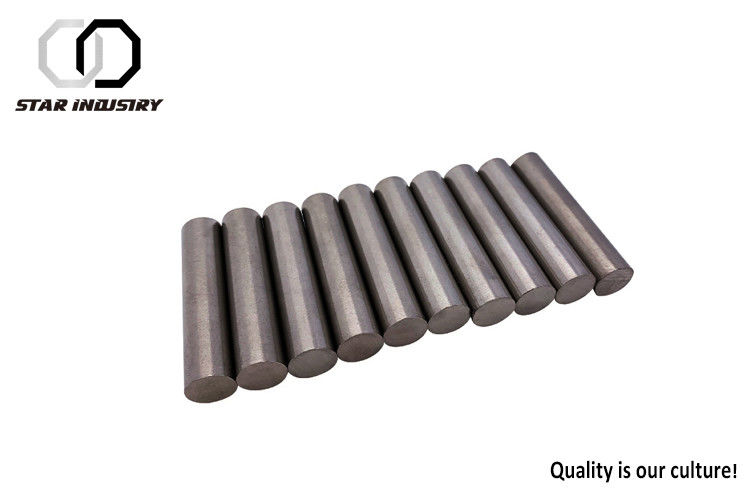

High Quality Cast Alnico5 High Temperature Magnets with different shape
AlNiCo magnets have been used in electromagnet transducers since 1950s,
and are considered by many to be the premier material for producing a warmth that no other type of magnet produces.
The cost of AlNiCo magnets is high.
| Magnetic and Physical Properties of Cast Alnico Magnet | |||||||||||||
| Grades | Equivalent MMPA Class | Remanence | Coercive Force | Maximum Energy Product | Density | Reversible Temp. Coefficient | Reversible Temp. Coefficient | Curie Temp. | Temp. Coefficient | Remark | |||
| Br | Hcb | (BH)max | g/cm3 | α(Br) | α(Hcj) | TC | TW | ||||||
| mT | Gs | KA/m | Oe |
KJ/ m3 |
MGOe | %/℃ | %/℃ | ℃ | ℃ | ||||
| LN10 | ALNICO3 | 600 | 6000 | 40 | 500 | 10 | 1.2 | 6.9 | -0.03 | -0.02 | 810 | 450 | Isotropy |
| LNG13 | ALNICO2 | 700 | 7000 | 48 | 600 | 12.8 | 1.6 | 7.2 | -0.03 | +0.02 | 810 | 450 | |
| LNGT18 | ALNICO8 | 580 | 5800 | 100 | 1250 | 18 | 2.2 | 7.3 | -0.025 | +0.02 | 860 | 550 | |
| LNG37 | ALNICO5 | 1200 | 12000 | 48 | 600 | 37 | 4.65 | 7.3 | -0.02 | +0.02 | 850 | 525 | Anisotropy |
| LNG40 | ALNICO5 | 1250 | 12500 | 48 | 600 | 40 | 5 | 7.3 | -0.02 | +0.02 | 850 | 525 | |
| LNG44 | ALNICO5 | 1250 | 12500 | 52 | 650 | 44 | 5.5 | 7.3 | -0.02 | +0.02 | 850 | 525 | |
| LNG52 |
ALNIC05 DG |
1300 | 13000 | 56 | 700 | 52 | 6.5 | 7.3 | -0.02 | +0.02 | 850 | 525 | |
| LNG60 |
ALNICO5 -7 |
1350 | 13500 | 59 | 740 | 60 | 7.5 | 7.3 | -0.02 | +0.02 | 850 | 525 | |
| LNGT28 | ALNICO6 | 1000 | 10000 | 57.6 | 720 | 28 | 3.5 | 7.3 | -0.02 | +0.03 | 850 | 525 | |
| LNGT36J |
ALNICO8 HC |
700 | 7000 | 140 | 1750 | 36 | 4.5 | 7.3 | -0.025 | +0.02 | 860 | 550 | |
| LNGT38 | ALNICO8 | 800 | 8000 | 110 | 1380 | 38 | 4.75 | 7.3 | -0.025 | +0.02 | 860 | 550 | |
| LNGT40 | 820 | 8200 | 110 | 1380 | 40 | 5 | 7.3 | -0.025 | 860 | 550 | |||
| LNGT60 | ALNICO9 | 900 | 9000 | 110 | 1380 | 60 | 7.5 | 7.3 | -0.025 | +0.02 | 860 | 550 | |
| LNGT72 | 1050 | 10500 | 112 | 1400 | 72 | 9 | 7.3 | -0.025 | 860 | 550 | |||
Please read below information when have a alnico product order:
The Alnico Magnet contains the elements of Aluminum, Cobalt and Nickle Alloy and other composite,
which can be made either by casting or sintering process.
As features of both hardness and high working temperature parameters, they are widely used in many different application with a wide range of magnetic properties. Meantime, an excellent corrosion resistance is also one of its features.
However, the most disadvantages point for this material is in low value of coercive force, which be possible to decrease the magnetic power during in use subject to using environment, we suggest you to discuss with us when ordering.
