Black Ndfeb Rare Earth Magnet High Magnetic Energy Epoxy Coated For Wind Turbine

Certification
China Star United Industry Co.,LTD certification
China Star United Industry Co.,LTD certification
Customer Reviews
work with Star more than 5 years, they help us design the rubber coated magnets for lighting, very very Strong pulling force, now we have strong Euro market for this project

—— Mr. Stijn en

Accept Paypal for first try the quality, quality is high and grades are truly N52, 24K gold plated 1/2 spheres, fantastic! now back for many more orders with STAR

—— Mr. Schultz

The thickness of coating 0.035 mm or less will be acceptable, formal quotation to formal shipping, everything fast and good!

—— Dr. Alex Stadnik

good supplier and man, can help with everything in time, especially provide different coating for magnet exposed in damp environment and outdoors.

—— Allan @ doorstop

they make N38 magnets and magnetic therapy products for me 8 years, with good workshop together CNC machined centre, they can assembly our magnetic medical equipment parts quickly, you can want STAR.

—— Gerardine Robinson

good job for pickup magnet, perfect on alnico V and VIII

—— Rustam Gilmanov

Thank you very much for the valuable information. We can learn from each other and even defeat this virus together.

—— Paul Cunningham

It is impressive how much concern and help I receive from my business partners Alice in China

—— Luciana Pistillo

Expert! not only N52 strongest magnet, but magnetic assembly design and CNC capacity

—— Carol & John

I'm Online Chat Now

Black Ndfeb Rare Earth Magnet High Magnetic Energy Epoxy Coated For Wind Turbine

Black Ndfeb Rare Earth Magnet High Magnetic Energy Epoxy Coated For Wind Turbine
Black Ndfeb Rare Earth Magnet High Magnetic Energy Epoxy Coated For Wind Turbine Black Ndfeb Rare Earth Magnet High Magnetic Energy Epoxy Coated For Wind Turbine Black Ndfeb Rare Earth Magnet High Magnetic Energy Epoxy Coated For Wind Turbine

Large Image :  Black Ndfeb Rare Earth Magnet High Magnetic Energy Epoxy Coated For Wind Turbine

Product Details:
Place of Origin: China
Brand Name: STAR
Certification: MSDS, Patent certificate, ISO9001, RoHS, Quality Certificate
Model Number: R13-N52
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $0.01~$498.00
Packaging Details: Non-magnetism packing with Iron and foam protection, Export carton and pallet
Delivery Time: 7~30 days as customer's project and quantity
Payment Terms: T/T, Western Union, MoneyGram, Paypal, L/C, WECHAT
Supply Ability: 1500 tons per month

Black Ndfeb Rare Earth Magnet High Magnetic Energy Epoxy Coated For Wind Turbine

Description
Material: Ndfeb Rare Earth Magnet Color: Black
Surface Finish: Zn, Ni, Epoxy, Silver, Gold, Rubber Coated, Phosphatsing, Parylene, Custom Color Custom Support: 12 Years OEM And ODM Available For Custom
Tech Support: Our R & D Engineers Is Always For You Quality Assurance: Demagnetization Curve Report, Samples Testing
High Light:

rare earth ndfeb magnets

,

rare earth permanent magnet

Black Ndfeb Rare Earth Magnet High Magnetic Energy Epoxy Coated For Wind Turbine

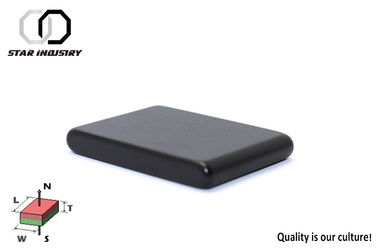

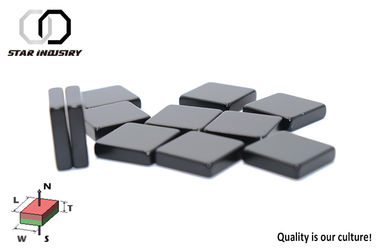

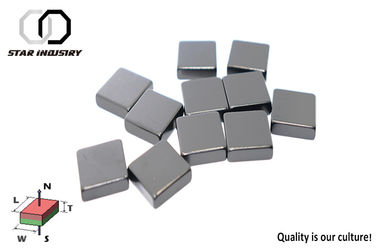

Black NdFeB magnet for wind turbine , High Magnetic Energy epoxy coated magnets



The block is then returned to the Quality Department to determine compliance. If the block meets specifications, it is then released for further processing. If the specifications are not met, or is too close to proceed, Engineering provides further corrections and returns to Production to modify the dimensions and resubmit to Quality for testing. This is the most expensive solution and can typically only be done on Neodymium Iron Boron magnets. Samarium Cobalt is very difficult to demagnetize completely, hence this type of processing cannot be used



Company production advantages:



1. Design and Tool assistance:

More than 12 years professional factory production line for OEM and ODM magnet solutions, thousands of molding tools available for your customized magnet design, you think it, we make it for you. Below is our workshop for your reference.



2. Measuring of magnet:

Quality is our culture, all our products is coming with good quality finished and Demagnetization curve as well as we have special team work for after sales services.



3. Testing for customer’s magnet:

We know most of customers have not much professional equipment for their magnet testing, But do not worry, we can free of charge help you test if it is true.



When you buy magnets with a very lower price, or you think something is not good when use the magnets, you can ask us for help, we will do the professional testing and let you know what you get.



4. Fast and safety delivery

We have worked with some experienced Express courier and Sea shipper more than 10 years, we can guarantee every process of your magnet order from materials, design, production, testing to delivery, we really do all care.



5. Suggestions and feedback

We love customers and love to hear from you whether it's feedback or questions about our Quality, Service, Market, etc, we will continue improving our performance and together we are stronger.



Black Ndfeb Rare Earth Magnet High Magnetic Energy Epoxy Coated For Wind Turbine 0



Grade    Remanece Coercive Force (Hcb) Intrinsic
Coercivity
     Max Energy Curie Coefficient TW
Tempreture
        Br          Hcj         (BH)max TC
T KGs KA/m KOe KA/m Koe KJ/m3 MGOe
N33 1.13-1.18 11.3-11.8 ≥836 ≥10.5 ≥955 ≥12 247-263 31-33 310 ≤80
N35 1.18-1.23 11.8-12.3 ≥868 ≥10.9 ≥955 ≥12 263-287 33-36 310 ≤80
N38 1.22-1.28 12.2-12.8 ≥899 ≥11.3 ≥955 ≥12 287-310 36-39 310 ≤80
N40 1.26-1.31 12.6-13.1 ≥923 ≥11.6 ≥955 ≥12 302-326 38-41 310 ≤80
N42 1.28-1.34 12.8-13.4 ≥923 ≥11.6 ≥955 ≥12 318-342 40-43 310 ≤80
N45 1.33-1.38 13.3-13.8 ≥923 ≥11.6 ≥955 ≥12 342-366 43-46 310 ≤80
N48 1.38-1.42 13.8-14.2 ≥923 ≥11.6 ≥955 ≥12 358-390 45-48 310 ≤80
N50 1.40-1.45 14.0-14.5 ≥836 ≥10.5 ≥876 ≥11 382-406 48-51 310 ≤80
N52 1.43-1.48 14.3-14.8 ≥796 ≥10.0 ≥876 ≥11 398-422 50-53 310 ≤80
N35M 1.17-1.22 11.7-12.2 ≥868 ≥10.9 ≥1114 ≥14 263-287 33-36 320 ≤100
N38M 1.22-1.25 12.2-12.5 ≥899 ≥11.3 ≥1114 ≥14 287-310 36-39 320 ≤100
N40M 1.25-1.28 12.5-12.8 ≥923 ≥11.6 ≥1114 ≥14 302-326 38-41 320 ≤100
N42M 1.28-1.32 12.8-13.2 ≥955 ≥12.0 ≥1114 ≥14 318-342 40-43 320 ≤100
N45M 1.32-1.38 13.2-13.8 ≥995 ≥12.5 ≥1114 ≥14 342-366 43-46 320 ≤100
N48M 1.36-1.43 13.6-14.3 ≥1027 ≥12.9 ≥1114 ≥14 366-390 46-49 320 ≤100
N50M 1.40-1.45 14.0-14.5 ≥1033 ≥13.0 ≥1114 ≥14 382-406 48-51 320 ≤100
N33H 1.14-1.19 11.4-11.9 ≥836 ≥10.5 ≥1353 ≥17 247-270 31-34 330 ≤120
N35H 1.17-1.22 11.7-12.2 ≥868 ≥10.9 ≥1353 ≥17 263-287 33-36 330 ≤120
N38H 1.22-1.25 12.2-12.5 ≥899 ≥11.3 ≥1353 ≥17 287-310 36-39 330 ≤120
N40H 1.25-1.28 12.5-12.8 ≥923 ≥11.6 ≥1353 ≥17 302-326 38-41 330 ≤120
N42H 1.28-1.32 12.8-13.2 ≥955 ≥12.0 ≥1353 ≥17 318-342 40-43 330 ≤120
N45H 1.30-1.36 13.0-13.6 ≥963 ≥12.1 ≥1353 ≥17 326-358 43-46 330 ≤120
N48H 1.37-1.43 13.7-14.3 ≥995 ≥12.5 ≥1353 ≥17 366-390 46-49 330 ≤120
N30SH 1.08-1.13 10.8-11.3 ≥810 ≥10.2 ≥1592 ≥20 223-247 28-31 340 ≤150
N33SH 1.13-1.17 11.3-11.7 ≥844 ≥10.6 ≥1592 ≥20 247-271 31-34 340 ≤150
N35SH 1.17-1.22 11.7-12.2 ≥876 ≥11.0 ≥1592 ≥20 263-287 33-36 340 ≤150
N38SH 1.22-1.25 12.2-12.5 ≥907 ≥11.4 ≥1592 ≥20 287-310 36-39 340 ≤150
N40SH 1.25-1.28 12.5-12.8 ≥939 ≥11.8 ≥1592 ≥20 302-326 38-41 340 ≤150
N42SH 1.28-1.32 12.8-13.2 ≥987 ≥12.4 ≥1592 ≥20 318-342 40-43 340 ≤150
N45SH 1.32-1.38 13.2-13.8 ≥1003 ≥12.6 ≥1592 ≥20 342-366 43-46 340 ≤150
N28UH 1.02-1.08 10.2-10.8 ≥764 ≥9.60 ≥1990 ≥25 207-231 26-29 350 ≤180
N30UH 1.08-1.13 10.8-11.3 ≥812 ≥10.2 ≥1990 ≥25 223-247 28-31 350 ≤180
N33UH 1.13-1.17 11.3-11.7 ≥852 ≥10.7 ≥1990 ≥25 247-271 31-34 350 ≤180
N35UH 1.18-1.22 11.8-12.2 ≥860 ≥10.8 ≥1990 ≥25 263-287 33-36 350 ≤180
N38UH 1.22-1.25 12.2-12.5 ≥876 ≥11.0 ≥1990 ≥25 287-310 36-39 350 ≤180
N40UH 1.25-1.28 12.5-12.8 ≥899 ≥11.3 ≥1990 ≥25 302-326 38-41 350 ≤180
N28EH 1.04-1.09 10.4-10.9 ≥780 ≥9.80 ≥2388 ≥30 207-231 26-29 380 ≤200
N30EH 1.08-1.13 10.8-11.3 ≥812 ≥10.2 ≥2388 ≥30 223-247 28-31 380 ≤200
N33EH 1.13-1.17 11.3-11.7 ≥836 ≥10.5 ≥2388 ≥30 247-271 31-34 380 ≤200
N35EH 1.17-1.22 11.7-12.2 ≥876 ≥11.0 ≥2388 ≥30 263-287 33-36 380 ≤200
N38EH 1.22-1.29 12.2-12.9 ≥915 ≥11.5 ≥2388 ≥30 287-318 36-40 380 ≤200
N30AH 1.08-1.15 10.8-11.5 ≥804 ≥10.1 ≥2786 ≥35 223-255 28-32 380 ≤230
N33AH 1.14-1.21 11.4-12.1 ≥852 ≥10.7 ≥2786 ≥35 247-279 31-35 380 ≤230
NdFeB Surface coating: Zinc plated Ni-Cu-Ni plated Silver plated Nickel plated Aurum plated Epoxy coated Phosphatsing Parylene other coating





Grade

Remanence

(Br)( KGs)

Coercive Force

(Hcb)( Koe)

Intrinsic Coercivity

(Hcj)(Koe)

Max Energy

(BH)max (MGoe)

Temperature Coefficient

(℃)

SmCo5
YX-5 4.30-5.00 ≥3.80 ≥15 4.0-5.0 ≤250
YX-6 5.00-6.00 ≥4.50 ≥15 5.0-7.0 ≤300
YX-16 7.50-8.50 ≥7.00 ≥15 14-17 ≤250
YX-18 8.50-9.20 ≥8.00 ≥18 16-19 ≤250
YX-20 8.80-9.50 ≥8.30 ≥18 18-21 ≤250
YX-22 9.00-9.80 ≥8.50 ≥15 21-23 ≤250
YX-24 9.5-10.30 ≥9.00 ≥15 22-25 ≤250
Sm2Co17
YX-24A 9.5-10.30 5.0-6.0 6.00-8.50 22-25 ≤200
YX-24B 9.5-10.30 ≥9.00 ≥15 22-25 ≤250
YX-24C 9.5-10.30 ≥9.00 ≥25 22-25 ≤300
YX-24D 9.5-10.30 ≥9.00 ≥30 22-25 ≤350
YX-26A 10.0-10.7 5.0-6.0 6.00-8.50 24-27 ≤200
YX-26B 10.0-10.7 ≥9.00 ≥15 24-27 ≤250
YX-26C 10.0-10.7 ≥9.00 ≥25 24-27 ≤300
YX-26D 10.0-10.7 ≥9.00 ≥30 24-27 ≤350
YX-28A 10.3-11.0 5.0-6.0 6.00-8.50 26-29 ≤200
YX-28B 10.3-11.0 ≥9.00 ≥15 26-29 ≤250
YX-28C 10.3-11.0 ≥9.00 ≥25 26-29 ≤300
YX-28D 10.3-11.0 ≥9.00 ≥30 26-29 ≤350
YX-30A 10.8-11.3 5.0-6.0 6.00-8.50 28-31 ≤200
YX-30B 10.8-11.3 ≥9.00 ≥15 28-31 ≤250
YX-30C 10.8-11.3 ≥9.00 ≥25 28-31 ≤300
YX-30D 10.8-11.3 ≥9.00 ≥30 28-31 ≤350
Bonded SmCo
ZYX-5 4.30-5.00 ≥3.80 8.0-12.0 4.0-5.0 ≤180
ZYX-8 5.00-6.50 ≥4.50 8.0-12.0 6.0-9.0 ≤180
Molding SmCo
ZSYX ≤6.50 ≤6.0 8.0-12.0 ≤9.0 ≤180
