Product Details:
|
| Name: | Neodymium Rare Earth Rod Magnets | Custom Support: | Rod |
|---|---|---|---|
| Material: | Neodymium, SmCo, Alnico Etc Rare Metals | Rare Element: | Pr,Nd,Pm,Sm,Co,Eu,Gd,Tb,Dy,La,Ce Etc |
| Surface Finish: | Zn, Ni, Epoxy, Silver, Gold, Rubber Coated, Phosphatsing, Parylene, Custom Color | Tech Support: | Our R & D Engineers Is Always For You |
| High Light: | rare earth permanent magnet,rare earth block magnets |
||

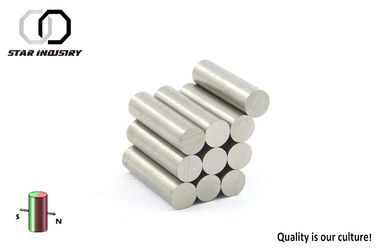

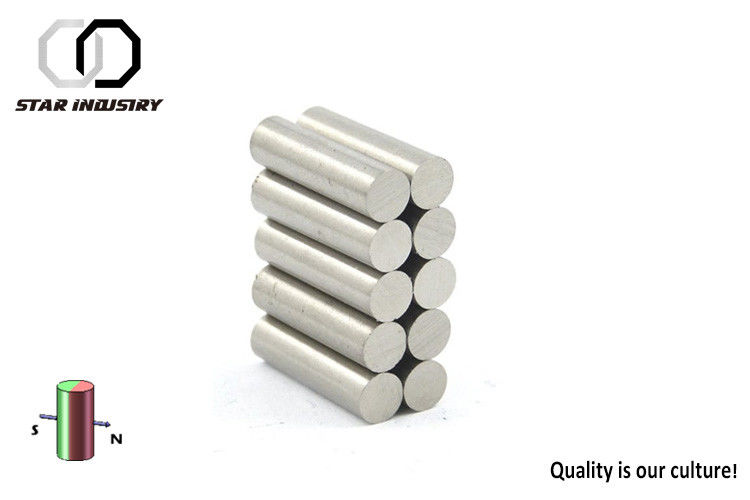

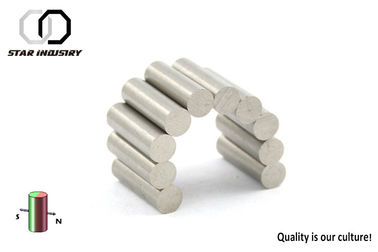

Super Strong Rare Earth Magnets , Neodymium Rare Earth Rod Magnets
The extremely strong magnetic fields and strong mechanical forces developed by rare earth magnets may create hazards to personnel through chipping, shattering or pinching on impact. Make sure that magnetized rare earth magnets are under control when they come in contact with each other or ferromagnetic materials. Alnico magnets, Ferrite magnets, and magnetic assemblies, depending on size, can also create similar hazardous conditions. It is important to wear safety glasses and other appropriate protective gear when handling large magnets. Wearing gloves to protect one's hands is also recommended
Company production advantages:
1. Design and Tool assistance:
More than 12 years professional factory production line for OEM and ODM magnet solutions, thousands of molding tools available for your customized magnet design, you think it, we make it for you. Below is our workshop for your reference.
2. Measuring of magnet:
Quality is our culture, all our products is coming with good quality finished and Demagnetization curve as well as we have special team work for after sales services.
3. Testing for customer’s magnet:
We know most of customers have not much professional equipment for their magnet testing, But do not worry, we can free of charge help you test if it is true.
When you buy magnets with a very lower price, or you think something is not good when use the magnets, you can ask us for help, we will do the professional testing and let you know what you get.
4. Fast and safety delivery
We have worked with some experienced Express courier and Sea shipper more than 10 years, we can guarantee every process of your magnet order from materials, design, production, testing to delivery, we really do all care.
5. Suggestions and feedback
We love customers and love to hear from you whether it's feedback or questions about our Quality, Service, Market, etc, we will continue improving our performance and together we are stronger.
| Grade | Remanece | Coercive Force (Hcb) | Intrinsic Coercivity |
Max Energy | Curie | Coefficient TW | ||||
| Tempreture | ||||||||||
| Br | Hcj | (BH)max | TC | |||||||
| T | KGs | KA/m | KOe | KA/m | Koe | KJ/m3 | MGOe | ℃ | ℃ | |
| N33 | 1.13-1.18 | 11.3-11.8 | ≥836 | ≥10.5 | ≥955 | ≥12 | 247-263 | 31-33 | 310 | ≤80 |
| N35 | 1.18-1.23 | 11.8-12.3 | ≥868 | ≥10.9 | ≥955 | ≥12 | 263-287 | 33-36 | 310 | ≤80 |
| N38 | 1.22-1.28 | 12.2-12.8 | ≥899 | ≥11.3 | ≥955 | ≥12 | 287-310 | 36-39 | 310 | ≤80 |
| N40 | 1.26-1.31 | 12.6-13.1 | ≥923 | ≥11.6 | ≥955 | ≥12 | 302-326 | 38-41 | 310 | ≤80 |
| N42 | 1.28-1.34 | 12.8-13.4 | ≥923 | ≥11.6 | ≥955 | ≥12 | 318-342 | 40-43 | 310 | ≤80 |
| N45 | 1.33-1.38 | 13.3-13.8 | ≥923 | ≥11.6 | ≥955 | ≥12 | 342-366 | 43-46 | 310 | ≤80 |
| N48 | 1.38-1.42 | 13.8-14.2 | ≥923 | ≥11.6 | ≥955 | ≥12 | 358-390 | 45-48 | 310 | ≤80 |
| N50 | 1.40-1.45 | 14.0-14.5 | ≥836 | ≥10.5 | ≥876 | ≥11 | 382-406 | 48-51 | 310 | ≤80 |
| N52 | 1.43-1.48 | 14.3-14.8 | ≥796 | ≥10.0 | ≥876 | ≥11 | 398-422 | 50-53 | 310 | ≤80 |
| N35M | 1.17-1.22 | 11.7-12.2 | ≥868 | ≥10.9 | ≥1114 | ≥14 | 263-287 | 33-36 | 320 | ≤100 |
| N38M | 1.22-1.25 | 12.2-12.5 | ≥899 | ≥11.3 | ≥1114 | ≥14 | 287-310 | 36-39 | 320 | ≤100 |
| N40M | 1.25-1.28 | 12.5-12.8 | ≥923 | ≥11.6 | ≥1114 | ≥14 | 302-326 | 38-41 | 320 | ≤100 |
| N42M | 1.28-1.32 | 12.8-13.2 | ≥955 | ≥12.0 | ≥1114 | ≥14 | 318-342 | 40-43 | 320 | ≤100 |
| N45M | 1.32-1.38 | 13.2-13.8 | ≥995 | ≥12.5 | ≥1114 | ≥14 | 342-366 | 43-46 | 320 | ≤100 |
| N48M | 1.36-1.43 | 13.6-14.3 | ≥1027 | ≥12.9 | ≥1114 | ≥14 | 366-390 | 46-49 | 320 | ≤100 |
| N50M | 1.40-1.45 | 14.0-14.5 | ≥1033 | ≥13.0 | ≥1114 | ≥14 | 382-406 | 48-51 | 320 | ≤100 |
| N33H | 1.14-1.19 | 11.4-11.9 | ≥836 | ≥10.5 | ≥1353 | ≥17 | 247-270 | 31-34 | 330 | ≤120 |
| N35H | 1.17-1.22 | 11.7-12.2 | ≥868 | ≥10.9 | ≥1353 | ≥17 | 263-287 | 33-36 | 330 | ≤120 |
| N38H | 1.22-1.25 | 12.2-12.5 | ≥899 | ≥11.3 | ≥1353 | ≥17 | 287-310 | 36-39 | 330 | ≤120 |
| N40H | 1.25-1.28 | 12.5-12.8 | ≥923 | ≥11.6 | ≥1353 | ≥17 | 302-326 | 38-41 | 330 | ≤120 |
| N42H | 1.28-1.32 | 12.8-13.2 | ≥955 | ≥12.0 | ≥1353 | ≥17 | 318-342 | 40-43 | 330 | ≤120 |
| N45H | 1.30-1.36 | 13.0-13.6 | ≥963 | ≥12.1 | ≥1353 | ≥17 | 326-358 | 43-46 | 330 | ≤120 |
| N48H | 1.37-1.43 | 13.7-14.3 | ≥995 | ≥12.5 | ≥1353 | ≥17 | 366-390 | 46-49 | 330 | ≤120 |
| N30SH | 1.08-1.13 | 10.8-11.3 | ≥810 | ≥10.2 | ≥1592 | ≥20 | 223-247 | 28-31 | 340 | ≤150 |
| N33SH | 1.13-1.17 | 11.3-11.7 | ≥844 | ≥10.6 | ≥1592 | ≥20 | 247-271 | 31-34 | 340 | ≤150 |
| N35SH | 1.17-1.22 | 11.7-12.2 | ≥876 | ≥11.0 | ≥1592 | ≥20 | 263-287 | 33-36 | 340 | ≤150 |
| N38SH | 1.22-1.25 | 12.2-12.5 | ≥907 | ≥11.4 | ≥1592 | ≥20 | 287-310 | 36-39 | 340 | ≤150 |
| N40SH | 1.25-1.28 | 12.5-12.8 | ≥939 | ≥11.8 | ≥1592 | ≥20 | 302-326 | 38-41 | 340 | ≤150 |
| N42SH | 1.28-1.32 | 12.8-13.2 | ≥987 | ≥12.4 | ≥1592 | ≥20 | 318-342 | 40-43 | 340 | ≤150 |
| N45SH | 1.32-1.38 | 13.2-13.8 | ≥1003 | ≥12.6 | ≥1592 | ≥20 | 342-366 | 43-46 | 340 | ≤150 |
| N28UH | 1.02-1.08 | 10.2-10.8 | ≥764 | ≥9.60 | ≥1990 | ≥25 | 207-231 | 26-29 | 350 | ≤180 |
| N30UH | 1.08-1.13 | 10.8-11.3 | ≥812 | ≥10.2 | ≥1990 | ≥25 | 223-247 | 28-31 | 350 | ≤180 |
| N33UH | 1.13-1.17 | 11.3-11.7 | ≥852 | ≥10.7 | ≥1990 | ≥25 | 247-271 | 31-34 | 350 | ≤180 |
| N35UH | 1.18-1.22 | 11.8-12.2 | ≥860 | ≥10.8 | ≥1990 | ≥25 | 263-287 | 33-36 | 350 | ≤180 |
| N38UH | 1.22-1.25 | 12.2-12.5 | ≥876 | ≥11.0 | ≥1990 | ≥25 | 287-310 | 36-39 | 350 | ≤180 |
| N40UH | 1.25-1.28 | 12.5-12.8 | ≥899 | ≥11.3 | ≥1990 | ≥25 | 302-326 | 38-41 | 350 | ≤180 |
| N28EH | 1.04-1.09 | 10.4-10.9 | ≥780 | ≥9.80 | ≥2388 | ≥30 | 207-231 | 26-29 | 380 | ≤200 |
| N30EH | 1.08-1.13 | 10.8-11.3 | ≥812 | ≥10.2 | ≥2388 | ≥30 | 223-247 | 28-31 | 380 | ≤200 |
| N33EH | 1.13-1.17 | 11.3-11.7 | ≥836 | ≥10.5 | ≥2388 | ≥30 | 247-271 | 31-34 | 380 | ≤200 |
| N35EH | 1.17-1.22 | 11.7-12.2 | ≥876 | ≥11.0 | ≥2388 | ≥30 | 263-287 | 33-36 | 380 | ≤200 |
| N38EH | 1.22-1.29 | 12.2-12.9 | ≥915 | ≥11.5 | ≥2388 | ≥30 | 287-318 | 36-40 | 380 | ≤200 |
| N30AH | 1.08-1.15 | 10.8-11.5 | ≥804 | ≥10.1 | ≥2786 | ≥35 | 223-255 | 28-32 | 380 | ≤230 |
| N33AH | 1.14-1.21 | 11.4-12.1 | ≥852 | ≥10.7 | ≥2786 | ≥35 | 247-279 | 31-35 | 380 | ≤230 |
| NdFeB Surface coating: | Zinc plated | Ni-Cu-Ni plated | Silver plated | Nickel plated | Aurum plated | Epoxy coated | Phosphatsing | Parylene | other coating | |
| Grade |
Remanence (Br)( KGs) |
Coercive Force (Hcb)( Koe) |
Intrinsic Coercivity (Hcj)(Koe) |
Max Energy (BH)max (MGoe) |
Temperature Coefficient (℃) |
| SmCo5 | |||||
| YX-5 | 4.30-5.00 | ≥3.80 | ≥15 | 4.0-5.0 | ≤250 |
| YX-6 | 5.00-6.00 | ≥4.50 | ≥15 | 5.0-7.0 | ≤300 |
| YX-16 | 7.50-8.50 | ≥7.00 | ≥15 | 14-17 | ≤250 |
| YX-18 | 8.50-9.20 | ≥8.00 | ≥18 | 16-19 | ≤250 |
| YX-20 | 8.80-9.50 | ≥8.30 | ≥18 | 18-21 | ≤250 |
| YX-22 | 9.00-9.80 | ≥8.50 | ≥15 | 21-23 | ≤250 |
| YX-24 | 9.5-10.30 | ≥9.00 | ≥15 | 22-25 | ≤250 |
| Sm2Co17 | |||||
| YX-24A | 9.5-10.30 | 5.0-6.0 | 6.00-8.50 | 22-25 | ≤200 |
| YX-24B | 9.5-10.30 | ≥9.00 | ≥15 | 22-25 | ≤250 |
| YX-24C | 9.5-10.30 | ≥9.00 | ≥25 | 22-25 | ≤300 |
| YX-24D | 9.5-10.30 | ≥9.00 | ≥30 | 22-25 | ≤350 |
| YX-26A | 10.0-10.7 | 5.0-6.0 | 6.00-8.50 | 24-27 | ≤200 |
| YX-26B | 10.0-10.7 | ≥9.00 | ≥15 | 24-27 | ≤250 |
| YX-26C | 10.0-10.7 | ≥9.00 | ≥25 | 24-27 | ≤300 |
| YX-26D | 10.0-10.7 | ≥9.00 | ≥30 | 24-27 | ≤350 |
| YX-28A | 10.3-11.0 | 5.0-6.0 | 6.00-8.50 | 26-29 | ≤200 |
| YX-28B | 10.3-11.0 | ≥9.00 | ≥15 | 26-29 | ≤250 |
| YX-28C | 10.3-11.0 | ≥9.00 | ≥25 | 26-29 | ≤300 |
| YX-28D | 10.3-11.0 | ≥9.00 | ≥30 | 26-29 | ≤350 |
| YX-30A | 10.8-11.3 | 5.0-6.0 | 6.00-8.50 | 28-31 | ≤200 |
| YX-30B | 10.8-11.3 | ≥9.00 | ≥15 | 28-31 | ≤250 |
| YX-30C | 10.8-11.3 | ≥9.00 | ≥25 | 28-31 | ≤300 |
| YX-30D | 10.8-11.3 | ≥9.00 | ≥30 | 28-31 | ≤350 |
| Bonded SmCo | |||||
| ZYX-5 | 4.30-5.00 | ≥3.80 | 8.0-12.0 | 4.0-5.0 | ≤180 |
| ZYX-8 | 5.00-6.50 | ≥4.50 | 8.0-12.0 | 6.0-9.0 | ≤180 |
| Molding SmCo | |||||
| ZSYX | ≤6.50 | ≤6.0 | 8.0-12.0 | ≤9.0 | ≤180 |
