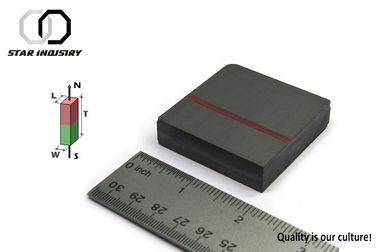

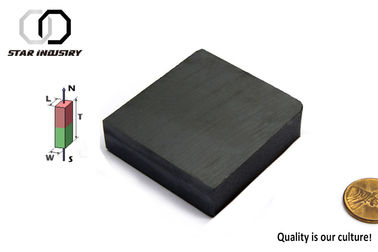

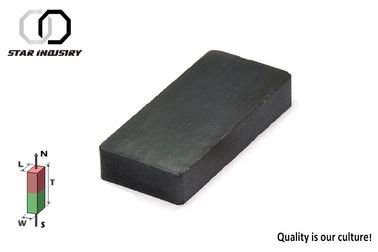

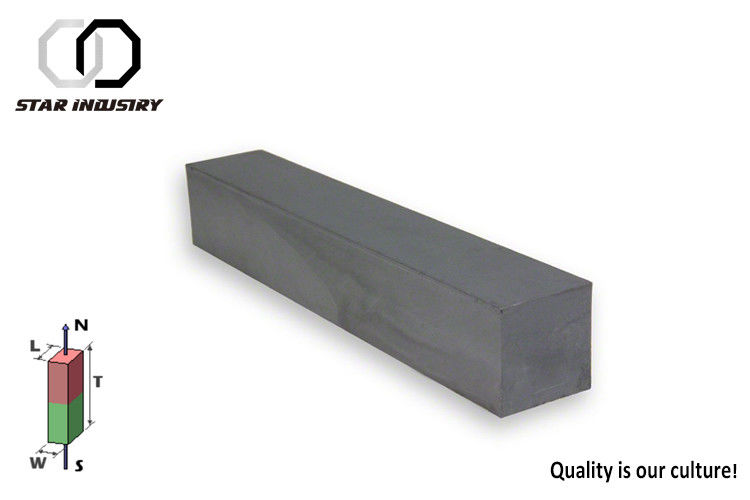

Permanent Ferrite Block Magnets Y30 C8 Radial Magnetized Direction

Permanent Ferrite Block Magnets Y30 C8 Radial Magnetized Direction
Permanent Ferrite Block Magnets Y30 C8 Radial Magnetized Direction Permanent Ferrite Block Magnets Y30 C8 Radial Magnetized Direction Permanent Ferrite Block Magnets Y30 C8 Radial Magnetized Direction Permanent Ferrite Block Magnets Y30 C8 Radial Magnetized Direction

Large Image :  Permanent Ferrite Block Magnets Y30 C8 Radial Magnetized Direction

Product Details:
Place of Origin: China
Brand Name: STAR
Certification: ISO9001, RoHS, MSDS, Patent certificate, Quality Certificate
Model Number: F3-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $0.0001~$100.00
Packaging Details: Non-magnetism packing with Iron and foam protection, Export carton and pallet
Delivery Time: 5~15 days as per customer's project and quantity
Payment Terms: T/T, Western Union, MoneyGram, Paypal, L/C, WECHAT
Supply Ability: 500 tons per month

Permanent Ferrite Block Magnets Y30 C8 Radial Magnetized Direction

Composite: Hard Ferrite Shape: Cylinder,disc, Ring.., Cylinder, Round Disc
Grade: Y35 Magnetized Direction: Radial
Application: Industrial Magnet, Artware,Electronic Accessories,electric Moto
High Light:

ferrite disc magnets


ferrite permanent magnets

Permanent block ferrite magnet Y30 , c8 ferrite magnet for speakers
Tooling is always needed when pressed, More than 10 years professional factory production line for OEM and ODM magnet solutions, thousands of molding tools available for your customized magnet design, you think it, we make it for you.
The magnetization can be done by axially, radially, multi-poles axially and multi-poles on circumference, etc.
Due to the low cost, medium power and productivity by mass production, they are widely used in various industries for many different applications.
Our Services:
1. Technical consulting:
When you are not sure what you need, please help provide your product and project details, our engineers will evaluate and give the best solution to you in short time.
2. Testing of customer’s material and magnet performance
We know most of customers have not much professional equipment for their magnet testing, But do not worry, we can free of charge help you test if it is true.
When you buy magnets with a very lower price, or you think something is not good when use the magnets, you can ask us for help, we will do the professional testing and let you know what you get.
3. Fast and safety shipping
We have worked with some experienced Express courier and Sea shipper more than 10 years, we can guarantee every process of your magnet order from materials, design, production, testing to delivery, we really do all care.
4. Suggestions and Comments
We love customers and love to hear from you whether it's feedback or questions about our Quality, Service, Market, etc, we will continue improving our performance and together we are stronger.


                  Br                 bHc                 iHc           BHmax
mT KG KA/m KOe KA/m KOe KJ/m³ MGOe
Y10T 200~235 2.0~2.35 125~160 1.57~2.01 210~280 2.64~3.52 6.5~9.5 0.8~1.2
Y20 320~380 3.2~3.8 135~190 1.70~2.38 140~195 1.76~2.45 18.0~22.0 2.3~2.8
Y22H 310~360 3.1~3.6 220~250 2.77~3.14 280~320 3.52~4.02 20.0~24.0 2.5~3.0
Y23 320~370 3.2~3.7 170~190 2.14~2.38 190~230 2.39~2.89 20.0~25.5 2.5~3.2
Y25 360~400 3.6~4.0 135~170 1.70~2.14 140~200 1.76~2.51 22.5~28.0 2.8~3.5
Y26H 360~390 3.6~3.9 220~250 2.77~3.14 225~255 2.83~3.21 23.0~28.0 2.9~3.5
Y27H 370~400 3.7~4.0 205~250 2.58~3.14 210~255 2.64~3.21 25.0~29.0 3.1~3.7
Y30 370~400 3.7~4.0 175~210 2.20~2.64 180~220 2.26~2.77 26.0~30.0 3.3~3.8
Y30BH 380~390 3.8~3.9 223~235 2.80~2.95 231~245 2.90~3.08 27.0~30.0 3.4~3.7
Y30H-1 380~400 3.8~4.0 230~275 2.89~3.46 235~290 2.95~3.65 27.0~32.0 3.4~4.0
Y30H-2 395~415 3.95~4.15 275~300 3.46~3.77 310~335 3.90~4.21 28.5~32.5 3.5~4.0
Y32 400~420 4.0~4.2 160~190 2.01~2.38 165~195 2.07~2.45 30.0~33.5 3.8~4.2
Y33 410~430 4.1~4.3 220~250 2.77~3.14 225~255 2.83~3.21 31.5~35.0 4.0~4.4
Y35 400~410 4.0~4.1 175~195 2.20~2.45 180~200 2.26~2.51 30.0~32.0 3.8~4.0

Our Magnet application:
Ferrite magnets are widely used in motors, sensors, loudspeakers, holding-magnet system, magnetic couplings, magnetic therapy, toys, etc.
a) Electro-acoustic field: such as loudspeaker, headphone, earphone, stage sound device, alarm, microphone and so on.
Because of good performance, our magnets can provide sound equipment better sensitiveness and susceptibility.
b) Electric products: Permanent magnetic actuator vacuum circuit breaker, magnetic latching relay, watt-hour meter, water meter, sensor, reed switch and so on.
c) Motor areas: VCM, CDVD-ROM, generator, electromotor, servo motor, vibration motor, step motor, DC motor, linear motor and so on.
Our magnets with stable performance and high HCJ can work under high temperature which can guarantee your products work better.
d) mechanical equipment: magnetic separator, magnetic holder, and other magnetic machines.
e) Health care: nuclear magnetic resonance spectrometer, medical apparatus and instruments, magnetic therapy and health care products, fuel-saving magnetizer and so on. Our stable permanent magnets used in health care areas will make people healthier.
f) Other fields: bags magnets, toy magnets, craft gifts and packaging, doors and windows magnets, magnetic locks, magnetic holding devices and so on.
 Apply for Wind Turbine Generator
Permanent Ferrite Block Magnets Y30 C8 Radial Magnetized Direction 0
