Product Details:
|
| Material: | Neodymium Iron Boron | Grade: | Strong Grade N52 |
|---|---|---|---|
| Surface Coating: | Nickel Plating | OEM / ODM: | Provide OEM And ODM Magnet Assembly Solutions More Than 10 Years |
| Magnet Technology: | Our R&D Engineers Welcome You To Discuss Any Time | Quality Assurance: | Free Samples Testing, Demagnetization Curve Report |
| High Light: | neodymium cylinder magnets,strong disk magnets |
||

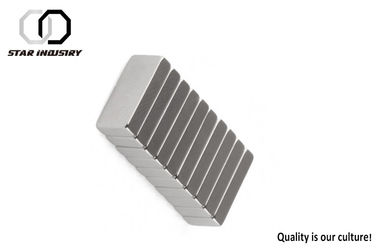

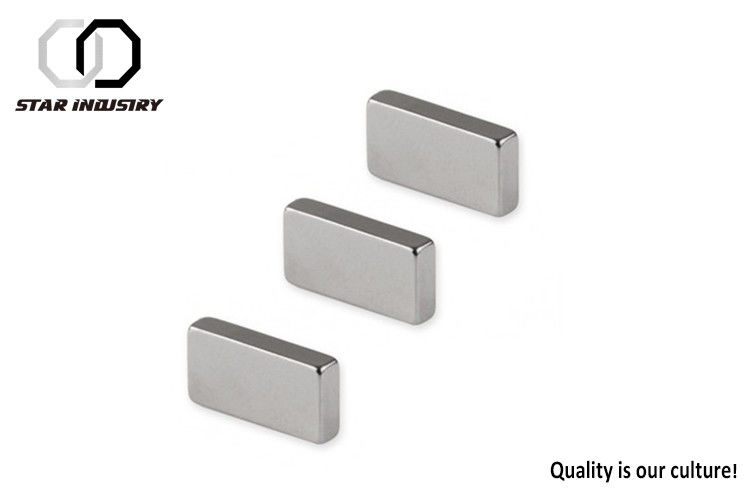

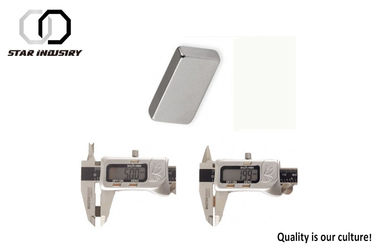

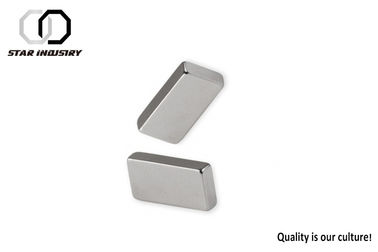

Great Powerful N52 NdFeB Medical Magnet block neodymium magnets suppliers
Product Description
| Product name: | N52 NdFeB Medical Magnet |
| Shape: | Block ( Disc, Cylinder/Rod, Ring, Countersunk, Segment, Trapezoid, Irregular shapes are available, Customized shapes for Sintered NdFeB Magnet are also available) |
| Direction of magnetisation: | Through the thickness or through the diameter |
| Type of coating: | Nickel, Ni-Cu-Ni, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and so on. |
| Grade: | N35-N52; N35M-N50M; N35H-N48H; N35SH-N45SH;N30UH-N40UH; N30EH-N38EH |
| Tolerance in size: | +/-0.1mm |
Our Services:
1. Technical consulting:
When you are not sure what you need, please help provide your product and project details, our engineers will evaluate and give the best solution to you in short time.
When you know what you need, just please provide your magnet specification and drawings for our further offer.
Our regular Grade for your reference: truly N28EH, N28UH, N30EH, N30UH, N33AH, N33EH, N33UH, N35, N38, N40, N42, N42H, N42SH, N45, N45H, N45SH, N48, N48M, N50, N50M, N52, more information please refer to our magnet grade table.
2. Design and Tool support
More than 10 years professional factory production line for OEM and ODM magnet solutions, thousands of molding tools available for your customized magnet design, you think it, we make it for you. Below is our workshop for your reference.
3. Measuring of magnetic properties
Quality is our culture, all our products is coming with good quality finished and Demagnetization curve as well as we have special team work for after sales services.
4. Testing of customer’s material and magnet performance
We know most of customers have not much professional equipment for their magnet testing, But do not worry, we can free of charge help you test if it is true.
When you buy magnets with a very lower price, or you think something is not good when use the magnets, you can ask us for help, we will do the professional testing and let you know what you get.
5. Fast and safety shipping
We have worked with some experienced Express courier and Sea shipper more than 10 years, we can guarantee every process of your magnet order from materials, design, production, testing to delivery, we really do all care.
6. Suggestions and Comments
We love customers and love to hear from you whether it's feedback or questions about our Quality, Service, Market, etc, we will continue improving our performance and together we are stronger.
| Grade | Remanece | Coercive Force (Hcb) | Intrinsic Coercivity |
Max Energy | Curie | Coefficient TW | ||||
| Tempreture | ||||||||||
| Br | Hcj | (BH)max | TC | |||||||
| T | KGs | KA/m | KOe | KA/m | Koe | KJ/m3 | MGOe | ℃ | ℃ | |
| N33 | 1.13-1.18 | 11.3-11.8 | ≥836 | ≥10.5 | ≥955 | ≥12 | 247-263 | 31-33 | 310 | ≤80 |
| N35 | 1.18-1.23 | 11.8-12.3 | ≥868 | ≥10.9 | ≥955 | ≥12 | 263-287 | 33-36 | 310 | ≤80 |
| N38 | 1.22-1.28 | 12.2-12.8 | ≥899 | ≥11.3 | ≥955 | ≥12 | 287-310 | 36-39 | 310 | ≤80 |
| N40 | 1.26-1.31 | 12.6-13.1 | ≥923 | ≥11.6 | ≥955 | ≥12 | 302-326 | 38-41 | 310 | ≤80 |
| N42 | 1.28-1.34 | 12.8-13.4 | ≥923 | ≥11.6 | ≥955 | ≥12 | 318-342 | 40-43 | 310 | ≤80 |
| N45 | 1.33-1.38 | 13.3-13.8 | ≥923 | ≥11.6 | ≥955 | ≥12 | 342-366 | 43-46 | 310 | ≤80 |
| N48 | 1.38-1.42 | 13.8-14.2 | ≥923 | ≥11.6 | ≥955 | ≥12 | 358-390 | 45-48 | 310 | ≤80 |
| N50 | 1.40-1.45 | 14.0-14.5 | ≥836 | ≥10.5 | ≥876 | ≥11 | 382-406 | 48-51 | 310 | ≤80 |
| N52 | 1.43-1.48 | 14.3-14.8 | ≥796 | ≥10.0 | ≥876 | ≥11 | 398-422 | 50-53 | 310 | ≤80 |
| N35M | 1.17-1.22 | 11.7-12.2 | ≥868 | ≥10.9 | ≥1114 | ≥14 | 263-287 | 33-36 | 320 | ≤100 |
| N38M | 1.22-1.25 | 12.2-12.5 | ≥899 | ≥11.3 | ≥1114 | ≥14 | 287-310 | 36-39 | 320 | ≤100 |
| N40M | 1.25-1.28 | 12.5-12.8 | ≥923 | ≥11.6 | ≥1114 | ≥14 | 302-326 | 38-41 | 320 | ≤100 |
| N42M | 1.28-1.32 | 12.8-13.2 | ≥955 | ≥12.0 | ≥1114 | ≥14 | 318-342 | 40-43 | 320 | ≤100 |
| N45M | 1.32-1.38 | 13.2-13.8 | ≥995 | ≥12.5 | ≥1114 | ≥14 | 342-366 | 43-46 | 320 | ≤100 |
| N48M | 1.36-1.43 | 13.6-14.3 | ≥1027 | ≥12.9 | ≥1114 | ≥14 | 366-390 | 46-49 | 320 | ≤100 |
| N50M | 1.40-1.45 | 14.0-14.5 | ≥1033 | ≥13.0 | ≥1114 | ≥14 | 382-406 | 48-51 | 320 | ≤100 |
| N33H | 1.14-1.19 | 11.4-11.9 | ≥836 | ≥10.5 | ≥1353 | ≥17 | 247-270 | 31-34 | 330 | ≤120 |
| N35H | 1.17-1.22 | 11.7-12.2 | ≥868 | ≥10.9 | ≥1353 | ≥17 | 263-287 | 33-36 | 330 | ≤120 |
| N38H | 1.22-1.25 | 12.2-12.5 | ≥899 | ≥11.3 | ≥1353 | ≥17 | 287-310 | 36-39 | 330 | ≤120 |
| N40H | 1.25-1.28 | 12.5-12.8 | ≥923 | ≥11.6 | ≥1353 | ≥17 | 302-326 | 38-41 | 330 | ≤120 |
| N42H | 1.28-1.32 | 12.8-13.2 | ≥955 | ≥12.0 | ≥1353 | ≥17 | 318-342 | 40-43 | 330 | ≤120 |
| N45H | 1.30-1.36 | 13.0-13.6 | ≥963 | ≥12.1 | ≥1353 | ≥17 | 326-358 | 43-46 | 330 | ≤120 |
| N48H | 1.37-1.43 | 13.7-14.3 | ≥995 | ≥12.5 | ≥1353 | ≥17 | 366-390 | 46-49 | 330 | ≤120 |
| N30SH | 1.08-1.13 | 10.8-11.3 | ≥810 | ≥10.2 | ≥1592 | ≥20 | 223-247 | 28-31 | 340 | ≤150 |
| N33SH | 1.13-1.17 | 11.3-11.7 | ≥844 | ≥10.6 | ≥1592 | ≥20 | 247-271 | 31-34 | 340 | ≤150 |
| N35SH | 1.17-1.22 | 11.7-12.2 | ≥876 | ≥11.0 | ≥1592 | ≥20 | 263-287 | 33-36 | 340 | ≤150 |
| N38SH | 1.22-1.25 | 12.2-12.5 | ≥907 | ≥11.4 | ≥1592 | ≥20 | 287-310 | 36-39 | 340 | ≤150 |
| N40SH | 1.25-1.28 | 12.5-12.8 | ≥939 | ≥11.8 | ≥1592 | ≥20 | 302-326 | 38-41 | 340 | ≤150 |
| N42SH | 1.28-1.32 | 12.8-13.2 | ≥987 | ≥12.4 | ≥1592 | ≥20 | 318-342 | 40-43 | 340 | ≤150 |
| N45SH | 1.32-1.38 | 13.2-13.8 | ≥1003 | ≥12.6 | ≥1592 | ≥20 | 342-366 | 43-46 | 340 | ≤150 |
| N28UH | 1.02-1.08 | 10.2-10.8 | ≥764 | ≥9.60 | ≥1990 | ≥25 | 207-231 | 26-29 | 350 | ≤180 |
| N30UH | 1.08-1.13 | 10.8-11.3 | ≥812 | ≥10.2 | ≥1990 | ≥25 | 223-247 | 28-31 | 350 | ≤180 |
| N33UH | 1.13-1.17 | 11.3-11.7 | ≥852 | ≥10.7 | ≥1990 | ≥25 | 247-271 | 31-34 | 350 | ≤180 |
| N35UH | 1.18-1.22 | 11.8-12.2 | ≥860 | ≥10.8 | ≥1990 | ≥25 | 263-287 | 33-36 | 350 | ≤180 |
| N38UH | 1.22-1.25 | 12.2-12.5 | ≥876 | ≥11.0 | ≥1990 | ≥25 | 287-310 | 36-39 | 350 | ≤180 |
| N40UH | 1.25-1.28 | 12.5-12.8 | ≥899 | ≥11.3 | ≥1990 | ≥25 | 302-326 | 38-41 | 350 | ≤180 |
| N28EH | 1.04-1.09 | 10.4-10.9 | ≥780 | ≥9.80 | ≥2388 | ≥30 | 207-231 | 26-29 | 380 | ≤200 |
| N30EH | 1.08-1.13 | 10.8-11.3 | ≥812 | ≥10.2 | ≥2388 | ≥30 | 223-247 | 28-31 | 380 | ≤200 |
| N33EH | 1.13-1.17 | 11.3-11.7 | ≥836 | ≥10.5 | ≥2388 | ≥30 | 247-271 | 31-34 | 380 | ≤200 |
| N35EH | 1.17-1.22 | 11.7-12.2 | ≥876 | ≥11.0 | ≥2388 | ≥30 | 263-287 | 33-36 | 380 | ≤200 |
| N38EH | 1.22-1.29 | 12.2-12.9 | ≥915 | ≥11.5 | ≥2388 | ≥30 | 287-318 | 36-40 | 380 | ≤200 |
| N30AH | 1.08-1.15 | 10.8-11.5 | ≥804 | ≥10.1 | ≥2786 | ≥35 | 223-255 | 28-32 | 380 | ≤230 |
| N33AH | 1.14-1.21 | 11.4-12.1 | ≥852 | ≥10.7 | ≥2786 | ≥35 | 247-279 | 31-35 | 380 | ≤230 |
| NdFeB Surface coating: | Zinc plated | Ni-Cu-Ni plated | Silver plated | Nickel plated | Aurum plated | Epoxy coated | Phosphatsing | Parylene | other coating | |
Package and Shipping
