Product Details:
|
Material: | Sintered Neodymium-Iron-Boron | Type: | Magnetic Door Holder |
---|---|---|---|
Grade: | N-50 | Finish Treatment: | Ni-cu-Ni Coating |
Popular Size: | D20×14mm | ||
High Light: | D20×14mm Holding Magnets,N50 Ndfeb Holding Magnets,N50 Ndfeb Door Stopper Magnets |

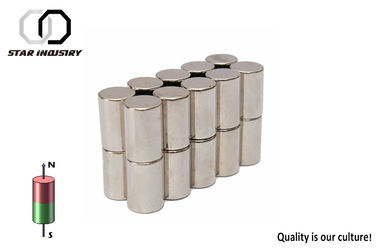

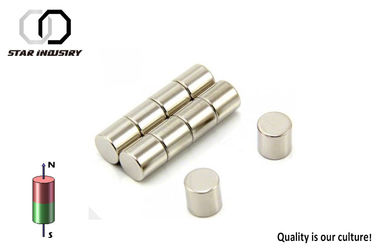

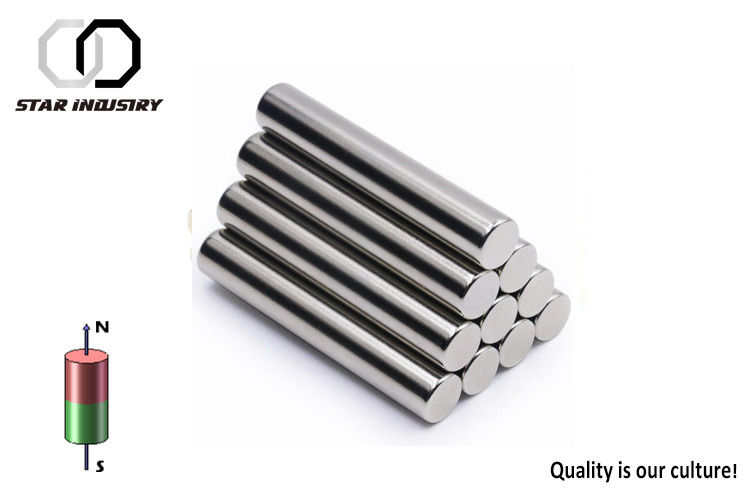

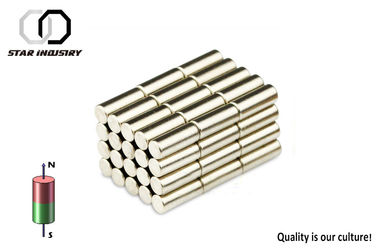

D20×14 neodymium magnets for door stopper , Super Powerful cylinder rare earth N50 Ndfeb Magnet for magnetic door holder
If you need ask a technical solution about the strongest N52 NdFeB Magnets, we are always happy to help here.
Our N52 door magnets is mainly for below door stopper application:
Mini Stopper
Multi stopper
Patio Door stopper
Floor Stopper
Decking Stopper
Frame Stopper
Shower Stopper
Catch Stopper
Custom Stop
Magnetic Holder
Car door
Window holder
glass door
cabinet door
garage door
sliding screen door
alarm door
security door
kitchen door
Room Stop
Soffit Stop
Baby Stop
Edge Stop
Chrome Stop
Important remarks for reference before you design the door production
1. Our magnet options are great but please bear in mind that these are not electromagnets,
they are the strongest ndfeb magnets available.
2. N52 Magnets are hot selling in USA, there are also N54 / N55 as “being called” global markets,
but actually that is only N52 made on top property level.
3. They're incredibly strong but please bear in mind the size, weight & windage of your door.
4. Door stops top & bottom are advised for anything other than a small, light door.
5. In order to save the cost, now many door customers use N50 instead of N52 Neodymium Magnet,
Even N35 very common as well.
Grade | Remanece | Coercive Force (Hcb) | Intrinsic Coercivity |
Max Energy | Curie | Coefficient TW | ||||
Tempreture | ||||||||||
Br | Hcj | (BH)max | TC | |||||||
T | KGs | KA/m | KOe | KA/m | Koe | KJ/m3 | MGOe | ℃ | ℃ | |
N33 | 1.13-1.18 | 11.3-11.8 | ≥836 | ≥10.5 | ≥955 | ≥12 | 247-263 | 31-33 | 310 | ≤80 |
N35 | 1.18-1.23 | 11.8-12.3 | ≥868 | ≥10.9 | ≥955 | ≥12 | 263-287 | 33-36 | 310 | ≤80 |
N38 | 1.22-1.28 | 12.2-12.8 | ≥899 | ≥11.3 | ≥955 | ≥12 | 287-310 | 36-39 | 310 | ≤80 |
N40 | 1.26-1.31 | 12.6-13.1 | ≥923 | ≥11.6 | ≥955 | ≥12 | 302-326 | 38-41 | 310 | ≤80 |
N42 | 1.28-1.34 | 12.8-13.4 | ≥923 | ≥11.6 | ≥955 | ≥12 | 318-342 | 40-43 | 310 | ≤80 |
N45 | 1.33-1.38 | 13.3-13.8 | ≥923 | ≥11.6 | ≥955 | ≥12 | 342-366 | 43-46 | 310 | ≤80 |
N48 | 1.38-1.42 | 13.8-14.2 | ≥923 | ≥11.6 | ≥955 | ≥12 | 358-390 | 45-48 | 310 | ≤80 |
N50 | 1.40-1.45 | 14.0-14.5 | ≥836 | ≥10.5 | ≥876 | ≥11 | 382-406 | 48-51 | 310 | ≤80 |
N52 | 1.43-1.48 | 14.3-14.8 | ≥796 | ≥10.0 | ≥876 | ≥11 | 398-422 | 50-53 | 310 | ≤80 |
N35M | 1.17-1.22 | 11.7-12.2 | ≥868 | ≥10.9 | ≥1114 | ≥14 | 263-287 | 33-36 | 320 | ≤100 |
N38M | 1.22-1.25 | 12.2-12.5 | ≥899 | ≥11.3 | ≥1114 | ≥14 | 287-310 | 36-39 | 320 | ≤100 |
N40M | 1.25-1.28 | 12.5-12.8 | ≥923 | ≥11.6 | ≥1114 | ≥14 | 302-326 | 38-41 | 320 | ≤100 |
N42M | 1.28-1.32 | 12.8-13.2 | ≥955 | ≥12.0 | ≥1114 | ≥14 | 318-342 | 40-43 | 320 | ≤100 |
N45M | 1.32-1.38 | 13.2-13.8 | ≥995 | ≥12.5 | ≥1114 | ≥14 | 342-366 | 43-46 | 320 | ≤100 |
N48M | 1.36-1.43 | 13.6-14.3 | ≥1027 | ≥12.9 | ≥1114 | ≥14 | 366-390 | 46-49 | 320 | ≤100 |
N50M | 1.40-1.45 | 14.0-14.5 | ≥1033 | ≥13.0 | ≥1114 | ≥14 | 382-406 | 48-51 | 320 | ≤100 |
N33H | 1.14-1.19 | 11.4-11.9 | ≥836 | ≥10.5 | ≥1353 | ≥17 | 247-270 | 31-34 | 330 | ≤120 |
N35H | 1.17-1.22 | 11.7-12.2 | ≥868 | ≥10.9 | ≥1353 | ≥17 | 263-287 | 33-36 | 330 | ≤120 |
N38H | 1.22-1.25 | 12.2-12.5 | ≥899 | ≥11.3 | ≥1353 | ≥17 | 287-310 | 36-39 | 330 | ≤120 |
N40H | 1.25-1.28 | 12.5-12.8 | ≥923 | ≥11.6 | ≥1353 | ≥17 | 302-326 | 38-41 | 330 | ≤120 |
N42H | 1.28-1.32 | 12.8-13.2 | ≥955 | ≥12.0 | ≥1353 | ≥17 | 318-342 | 40-43 | 330 | ≤120 |
N45H | 1.30-1.36 | 13.0-13.6 | ≥963 | ≥12.1 | ≥1353 | ≥17 | 326-358 | 43-46 | 330 | ≤120 |
N48H | 1.37-1.43 | 13.7-14.3 | ≥995 | ≥12.5 | ≥1353 | ≥17 | 366-390 | 46-49 | 330 | ≤120 |
N30SH | 1.08-1.13 | 10.8-11.3 | ≥810 | ≥10.2 | ≥1592 | ≥20 | 223-247 | 28-31 | 340 | ≤150 |
N33SH | 1.13-1.17 | 11.3-11.7 | ≥844 | ≥10.6 | ≥1592 | ≥20 | 247-271 | 31-34 | 340 | ≤150 |
N35SH | 1.17-1.22 | 11.7-12.2 | ≥876 | ≥11.0 | ≥1592 | ≥20 | 263-287 | 33-36 | 340 | ≤150 |
N38SH | 1.22-1.25 | 12.2-12.5 | ≥907 | ≥11.4 | ≥1592 | ≥20 | 287-310 | 36-39 | 340 | ≤150 |
N40SH | 1.25-1.28 | 12.5-12.8 | ≥939 | ≥11.8 | ≥1592 | ≥20 | 302-326 | 38-41 | 340 | ≤150 |
N42SH | 1.28-1.32 | 12.8-13.2 | ≥987 | ≥12.4 | ≥1592 | ≥20 | 318-342 | 40-43 | 340 | ≤150 |
N45SH | 1.32-1.38 | 13.2-13.8 | ≥1003 | ≥12.6 | ≥1592 | ≥20 | 342-366 | 43-46 | 340 | ≤150 |
N28UH | 1.02-1.08 | 10.2-10.8 | ≥764 | ≥9.60 | ≥1990 | ≥25 | 207-231 | 26-29 | 350 | ≤180 |
N30UH | 1.08-1.13 | 10.8-11.3 | ≥812 | ≥10.2 | ≥1990 | ≥25 | 223-247 | 28-31 | 350 | ≤180 |
N33UH | 1.13-1.17 | 11.3-11.7 | ≥852 | ≥10.7 | ≥1990 | ≥25 | 247-271 | 31-34 | 350 | ≤180 |
N35UH | 1.18-1.22 | 11.8-12.2 | ≥860 | ≥10.8 | ≥1990 | ≥25 | 263-287 | 33-36 | 350 | ≤180 |
N38UH | 1.22-1.25 | 12.2-12.5 | ≥876 | ≥11.0 | ≥1990 | ≥25 | 287-310 | 36-39 | 350 | ≤180 |
N40UH | 1.25-1.28 | 12.5-12.8 | ≥899 | ≥11.3 | ≥1990 | ≥25 | 302-326 | 38-41 | 350 | ≤180 |
N28EH | 1.04-1.09 | 10.4-10.9 | ≥780 | ≥9.80 | ≥2388 | ≥30 | 207-231 | 26-29 | 380 | ≤200 |
N30EH | 1.08-1.13 | 10.8-11.3 | ≥812 | ≥10.2 | ≥2388 | ≥30 | 223-247 | 28-31 | 380 | ≤200 |
N33EH | 1.13-1.17 | 11.3-11.7 | ≥836 | ≥10.5 | ≥2388 | ≥30 | 247-271 | 31-34 | 380 | ≤200 |
N35EH | 1.17-1.22 | 11.7-12.2 | ≥876 | ≥11.0 | ≥2388 | ≥30 | 263-287 | 33-36 | 380 | ≤200 |
N38EH | 1.22-1.29 | 12.2-12.9 | ≥915 | ≥11.5 | ≥2388 | ≥30 | 287-318 | 36-40 | 380 | ≤200 |
N30AH | 1.08-1.15 | 10.8-11.5 | ≥804 | ≥10.1 | ≥2786 | ≥35 | 223-255 | 28-32 | 380 | ≤230 |
N33AH | 1.14-1.21 | 11.4-12.1 | ≥852 | ≥10.7 | ≥2786 | ≥35 | 247-279 | 31-35 | 380 | ≤230 |
NdFeB Surface coating: | Zinc plated | Ni-Cu-Ni plated | Silver plated | Nickel plated | Aurum plated | Epoxy coated | Phosphatsing | Parylene | other coating | |
