N42 Super Neodymium Cylinder Magnets D10x30mm For Medical Facility

N42 Super Neodymium Cylinder Magnets D10x30mm For Medical Facility

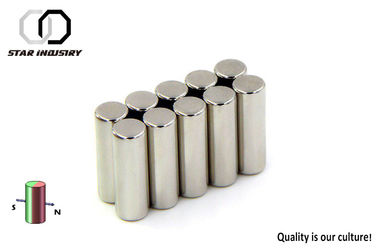

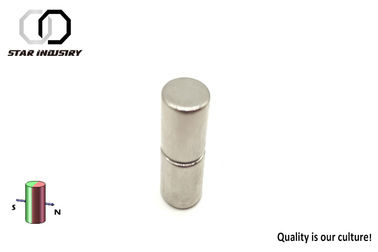

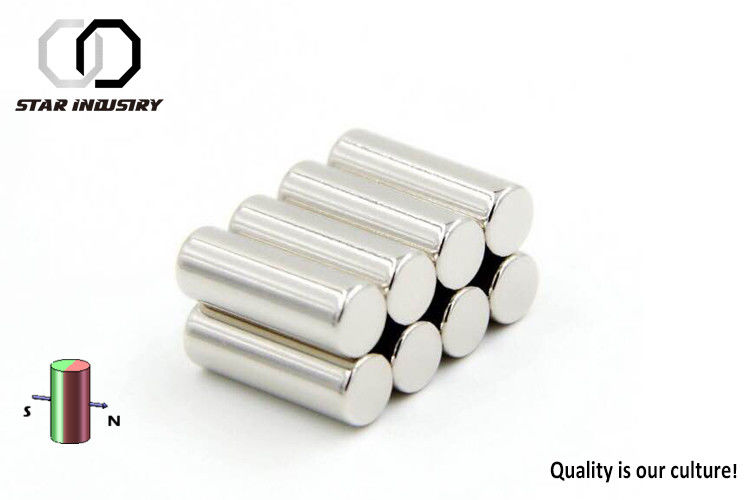

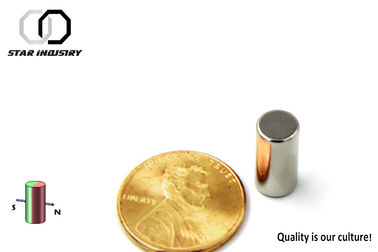

N42 Super Neodymium Cylinder Magnets D10x30mm For Medical Facility N42 Super Neodymium Cylinder Magnets D10x30mm For Medical Facility N42 Super Neodymium Cylinder Magnets D10x30mm For Medical Facility N42 Super Neodymium Cylinder Magnets D10x30mm For Medical Facility

Large Image :  N42 Super Neodymium Cylinder Magnets D10x30mm For Medical Facility

Product Details:
Place of Origin: China
Brand Name: STAR
Certification: ISO9001, RoHS, MSDS, Patent certificate, Quality Certificate
Model Number: M19-N42
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $0.01~$496.00
Packaging Details: Non-magnetism packing with Iron and foam protection, Export carton and pallet
Delivery Time: 5~35 days as per customer's project and quantity
Payment Terms: T/T, Western Union, MoneyGram, Paypal, L/C, WECHAT
Supply Ability: 1000 tons per month

N42 Super Neodymium Cylinder Magnets D10x30mm For Medical Facility

Description
Raw Materials: Nd, Fe, B, Cu, Etc. Grade: N42
Magnetization Direction: Radially Magnetized Direction Application: For Medical Machines
Magnet Technology: Our R&D Engineers Welcome You To Discuss Any Time Quality Assurance: Free Samples Testing, Demagnetization Curve Report
High Light:

neodymium cylinder magnets

,

sintered ndfeb magnet

N42 Super Neodymium Cylinder neodymium Magnet of D10x30mm for medical facility



Feature

High remanence
high coercivity
high magnetic energy product
high cost performance



Grade introduction:



Grade    Remanece Coercive Force (Hcb) Intrinsic
Coercivity
     Max Energy Curie Coefficient TW
Tempreture
        Br          Hcj         (BH)max TC
T KGs KA/m KOe KA/m Koe KJ/m3 MGOe
N33 1.13-1.18 11.3-11.8 ≥836 ≥10.5 ≥955 ≥12 247-263 31-33 310 ≤80
N35 1.18-1.23 11.8-12.3 ≥868 ≥10.9 ≥955 ≥12 263-287 33-36 310 ≤80
N38 1.22-1.28 12.2-12.8 ≥899 ≥11.3 ≥955 ≥12 287-310 36-39 310 ≤80
N40 1.26-1.31 12.6-13.1 ≥923 ≥11.6 ≥955 ≥12 302-326 38-41 310 ≤80
N42 1.28-1.34 12.8-13.4 ≥923 ≥11.6 ≥955 ≥12 318-342 40-43 310 ≤80
N45 1.33-1.38 13.3-13.8 ≥923 ≥11.6 ≥955 ≥12 342-366 43-46 310 ≤80
N48 1.38-1.42 13.8-14.2 ≥923 ≥11.6 ≥955 ≥12 358-390 45-48 310 ≤80
N50 1.40-1.45 14.0-14.5 ≥836 ≥10.5 ≥876 ≥11 382-406 48-51 310 ≤80
N52 1.43-1.48 14.3-14.8 ≥796 ≥10.0 ≥876 ≥11 398-422 50-53 310 ≤80
N35M 1.17-1.22 11.7-12.2 ≥868 ≥10.9 ≥1114 ≥14 263-287 33-36 320 ≤100
N38M 1.22-1.25 12.2-12.5 ≥899 ≥11.3 ≥1114 ≥14 287-310 36-39 320 ≤100
N40M 1.25-1.28 12.5-12.8 ≥923 ≥11.6 ≥1114 ≥14 302-326 38-41 320 ≤100
N42M 1.28-1.32 12.8-13.2 ≥955 ≥12.0 ≥1114 ≥14 318-342 40-43 320 ≤100
N45M 1.32-1.38 13.2-13.8 ≥995 ≥12.5 ≥1114 ≥14 342-366 43-46 320 ≤100
N48M 1.36-1.43 13.6-14.3 ≥1027 ≥12.9 ≥1114 ≥14 366-390 46-49 320 ≤100
N50M 1.40-1.45 14.0-14.5 ≥1033 ≥13.0 ≥1114 ≥14 382-406 48-51 320 ≤100
N33H 1.14-1.19 11.4-11.9 ≥836 ≥10.5 ≥1353 ≥17 247-270 31-34 330 ≤120
N35H 1.17-1.22 11.7-12.2 ≥868 ≥10.9 ≥1353 ≥17 263-287 33-36 330 ≤120
N38H 1.22-1.25 12.2-12.5 ≥899 ≥11.3 ≥1353 ≥17 287-310 36-39 330 ≤120
N40H 1.25-1.28 12.5-12.8 ≥923 ≥11.6 ≥1353 ≥17 302-326 38-41 330 ≤120
N42H 1.28-1.32 12.8-13.2 ≥955 ≥12.0 ≥1353 ≥17 318-342 40-43 330 ≤120
N45H 1.30-1.36 13.0-13.6 ≥963 ≥12.1 ≥1353 ≥17 326-358 43-46 330 ≤120
N48H 1.37-1.43 13.7-14.3 ≥995 ≥12.5 ≥1353 ≥17 366-390 46-49 330 ≤120
N30SH 1.08-1.13 10.8-11.3 ≥810 ≥10.2 ≥1592 ≥20 223-247 28-31 340 ≤150
N33SH 1.13-1.17 11.3-11.7 ≥844 ≥10.6 ≥1592 ≥20 247-271 31-34 340 ≤150
N35SH 1.17-1.22 11.7-12.2 ≥876 ≥11.0 ≥1592 ≥20 263-287 33-36 340 ≤150
N38SH 1.22-1.25 12.2-12.5 ≥907 ≥11.4 ≥1592 ≥20 287-310 36-39 340 ≤150
N40SH 1.25-1.28 12.5-12.8 ≥939 ≥11.8 ≥1592 ≥20 302-326 38-41 340 ≤150
N42SH 1.28-1.32 12.8-13.2 ≥987 ≥12.4 ≥1592 ≥20 318-342 40-43 340 ≤150
N45SH 1.32-1.38 13.2-13.8 ≥1003 ≥12.6 ≥1592 ≥20 342-366 43-46 340 ≤150
N28UH 1.02-1.08 10.2-10.8 ≥764 ≥9.60 ≥1990 ≥25 207-231 26-29 350 ≤180
N30UH 1.08-1.13 10.8-11.3 ≥812 ≥10.2 ≥1990 ≥25 223-247 28-31 350 ≤180
N33UH 1.13-1.17 11.3-11.7 ≥852 ≥10.7 ≥1990 ≥25 247-271 31-34 350 ≤180
N35UH 1.18-1.22 11.8-12.2 ≥860 ≥10.8 ≥1990 ≥25 263-287 33-36 350 ≤180
N38UH 1.22-1.25 12.2-12.5 ≥876 ≥11.0 ≥1990 ≥25 287-310 36-39 350 ≤180
N40UH 1.25-1.28 12.5-12.8 ≥899 ≥11.3 ≥1990 ≥25 302-326 38-41 350 ≤180
N28EH 1.04-1.09 10.4-10.9 ≥780 ≥9.80 ≥2388 ≥30 207-231 26-29 380 ≤200
N30EH 1.08-1.13 10.8-11.3 ≥812 ≥10.2 ≥2388 ≥30 223-247 28-31 380 ≤200
N33EH 1.13-1.17 11.3-11.7 ≥836 ≥10.5 ≥2388 ≥30 247-271 31-34 380 ≤200
N35EH 1.17-1.22 11.7-12.2 ≥876 ≥11.0 ≥2388 ≥30 263-287 33-36 380 ≤200
N38EH 1.22-1.29 12.2-12.9 ≥915 ≥11.5 ≥2388 ≥30 287-318 36-40 380 ≤200
N30AH 1.08-1.15 10.8-11.5 ≥804 ≥10.1 ≥2786 ≥35 223-255 28-32 380 ≤230
N33AH 1.14-1.21 11.4-12.1 ≥852 ≥10.7 ≥2786 ≥35 247-279 31-35 380 ≤230
NdFeB Surface coating: Zinc plated Ni-Cu-Ni plated Silver plated Nickel plated Aurum plated Epoxy coated Phosphatsing Parylene other coating
