Product Details:
|
| Materials: | Neodymium Iron Boron | Hot Grade: | N-33, N-35, N-52 |
|---|---|---|---|
| Plating: | Gold, Zn, Ni, Blue, Green, Custom Color | Tolerance: | 0.01mm ~ 0.05mm |
| Diameter: | D5mm | ||
| High Light: | neodymium sphere magnets,rare earth magnet balls |
||

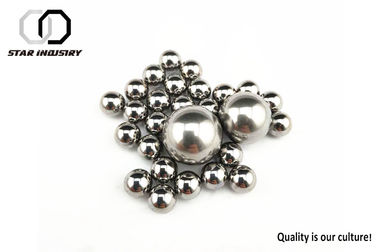

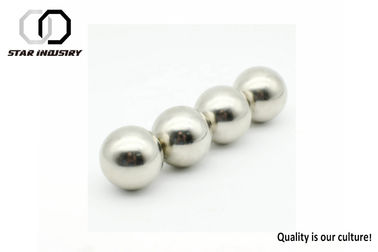

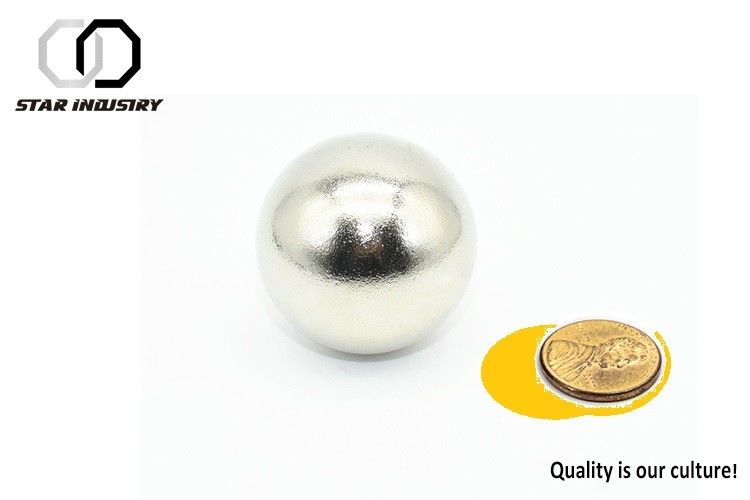

medical industry N35 neo magnet balls 5mm, NdFeB Magnet Balls Hand Massage Sphere
Three Absolute Advantages will help us give clients worry-free services, grow together and together we are both stronger:
1. Whatever you are looking for a common magetic balls / disc / fan-shaped / circular ring
/ block magnets,
or comprehensive magnetic solutionsin technology, assemblies as well as magnetic products,
Star Magnet will always be ready to help.
2. Whatever you think, we can make it for you, Ndfeb Sphere production capacity as following:
Sphere diameter can be as per customer request,
Minmum D1mm magnet balls, D2mm magnetic balls, always D3mm sphere, D4mm magnet sphere,
D5mm neo balls, D8mm neo spheres, D10mm neodymium balls,
Ø12.7mm (1 / 2 '') magnet sphere, D15.9mm magnetic sphere,
Ø20mm customized sphere balls, Ø25.4mm magnet spheres, 1 inch neodymium balls,
D32mm magnetic ball, Maxmium Ø50.8mm diameter magnetic spheres we produce.
3. Wheretever you are, more than 500 million magnets delivered to America, Euro, Australia,
Asia and Africa, Russia et countries fast and safety.
| Grade | Remanence | Coercive Force Hcb | Intrinsic Coercivity | Max Energy |
Curie Temp |
Coefficient TW |
||||
| Br | Hcj | (BH)max | TC | |||||||
| T | KGs | KA/m | KOe | KA/m | Koe | KJ/m3 | MGOe | ℃ | ℃ | |
| N33 | 1.13-1.18 | 11.3-11.8 | ≥836 | ≥10.5 | ≥955 | ≥12 | 247-263 | 31-33 | 310 | ≤80 |
| N35 | 1.18-1.23 | 11.8-12.3 | ≥868 | ≥10.9 | ≥955 | ≥12 | 263-287 | 33-36 | 310 | ≤80 |
| N38 | 1.22-1.28 | 12.2-12.8 | ≥899 | ≥11.3 | ≥955 | ≥12 | 287-310 | 36-39 | 310 | ≤80 |
| N40 | 1.26-1.31 | 12.6-13.1 | ≥923 | ≥11.6 | ≥955 | ≥12 | 302-326 | 38-41 | 310 | ≤80 |
| N42 | 1.28-1.34 | 12.8-13.4 | ≥923 | ≥11.6 | ≥955 | ≥12 | 318-342 | 40-43 | 310 | ≤80 |
| N45 | 1.33-1.38 | 13.3-13.8 | ≥923 | ≥11.6 | ≥955 | ≥12 | 342-366 | 43-46 | 310 | ≤80 |
| N48 | 1.38-1.42 | 13.8-14.2 | ≥923 | ≥11.6 | ≥955 | ≥12 | 358-390 | 45-48 | 310 | ≤80 |
| N50 | 1.40-1.45 | 14.0-14.5 | ≥836 | ≥10.5 | ≥876 | ≥11 | 382-406 | 48-51 | 310 | ≤80 |
| N52 | 1.43-1.48 | 14.3-14.8 | ≥796 | ≥10.0 | ≥876 | ≥11 | 398-422 | 50-53 | 310 | ≤80 |
| N35M | 1.17-1.22 | 11.7-12.2 | ≥868 | ≥10.9 | ≥1114 | ≥14 | 263-287 | 33-36 | 320 | ≤100 |
| N38M | 1.22-1.25 | 12.2-12.5 | ≥899 | ≥11.3 | ≥1114 | ≥14 | 287-310 | 36-39 | 320 | ≤100 |
| N40M | 1.25-1.28 | 12.5-12.8 | ≥923 | ≥11.6 | ≥1114 | ≥14 | 302-326 | 38-41 | 320 | ≤100 |
| N42M | 1.28-1.32 | 12.8-13.2 | ≥955 | ≥12.0 | ≥1114 | ≥14 | 318-342 | 40-43 | 320 | ≤100 |
| N45M | 1.32-1.38 | 13.2-13.8 | ≥995 | ≥12.5 | ≥1114 | ≥14 | 342-366 | 43-46 | 320 | ≤100 |
| N48M | 1.36-1.43 | 13.6-14.3 | ≥1027 | ≥12.9 | ≥1114 | ≥14 | 366-390 | 46-49 | 320 | ≤100 |
| N50M | 1.40-1.45 | 14.0-14.5 | ≥1033 | ≥13.0 | ≥1114 | ≥14 | 382-406 | 48-51 | 320 | ≤100 |
| N33H | 1.14-1.19 | 11.4-11.9 | ≥836 | ≥10.5 | ≥1353 | ≥17 | 247-270 | 31-34 | 330 | ≤120 |
| N35H | 1.17-1.22 | 11.7-12.2 | ≥868 | ≥10.9 | ≥1353 | ≥17 | 263-287 | 33-36 | 330 | ≤120 |
| N38H | 1.22-1.25 | 12.2-12.5 | ≥899 | ≥11.3 | ≥1353 | ≥17 | 287-310 | 36-39 | 330 | ≤120 |
| N40H | 1.25-1.28 | 12.5-12.8 | ≥923 | ≥11.6 | ≥1353 | ≥17 | 302-326 | 38-41 | 330 | ≤120 |
| N42H | 1.28-1.32 | 12.8-13.2 | ≥955 | ≥12.0 | ≥1353 | ≥17 | 318-342 | 40-43 | 330 | ≤120 |
| N45H | 1.30-1.36 | 13.0-13.6 | ≥963 | ≥12.1 | ≥1353 | ≥17 | 326-358 | 43-46 | 330 | ≤120 |
| N48H | 1.37-1.43 | 13.7-14.3 | ≥995 | ≥12.5 | ≥1353 | ≥17 | 366-390 | 46-49 | 330 | ≤120 |
