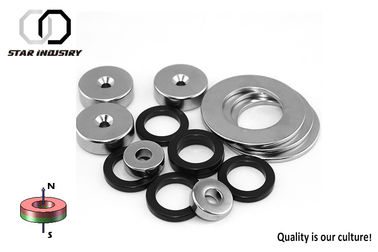

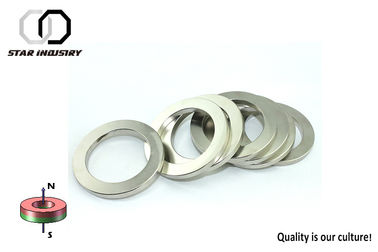

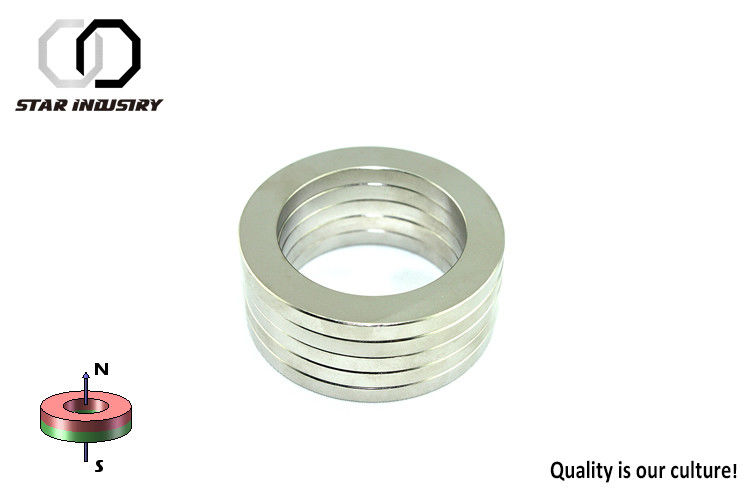

Product Details:
|
| Grade: | N45SH | Materials: | Nd, Fe, B, Pr, La Etc Materials Mixed |
|---|---|---|---|
| Magnetism: | Thickness Orientation | OEM / ODM: | 12 Years OEM And ODM Service System |
| QA: | Demagnetization Curve Report, Free Samples Testing | ||
| High Light: | N45SH Permanent Magnets,Thickness Orientation Permanent Magnets,N45SH Small Electromagnet |
||
permanent magnets and electromagnets , permanent magnets ltd , how to make permanent magnets
Rare earth powder is combustible; spontaneous combustion can occur when the powder is dry. If grinding,
always wet grind magnets to avoid spontaneous combustion of the grinding swarf. Never dry grind.
Make sure to have adequate ventilation when grinding magnets. Do not try to machine magnets using conventional tools,
as this can produce chipping and shattering. Always wear safety glasses
Our core competitive ability:
1. what about new magnet project consulting:
a. our engineers will be always here to help, just send your product details,
we will evaluate and give the best solution to you in short time.
b. we will keep Non-Disclosure Agreement for each new design project.
2. what abou the quality:
(a) BH curve, Demagnetization curve report for check when shipping
(b) Flux density, measurement is made by Gauss / Tesla meter
(c) Pull force measurement by mechanical method
3. what about customer's special requirement:
(1) Tolerance, between +/-0.05mm and +/-0.2mm as per magnet application
(2) CNC and assembly, we have great machining center for the process
(3) Plating, Ni-Cu-Ni, Grey Nickel, Epoxy, Silver, 24K Gold, etc,
other special Rubber Coated, Phosphatsing, Parylene, Customized coating.
4. what about the shortest lead time:
Generally speaking, we have raw materials in our stock, Such N35, N38, N40, N42, N52
5. what about the shipping:
We have worked with some experienced Express courier and Sea shipper more than 12 years,
we can guarantee every process of your order from materials, design, production, testing to delivery, we really do all care.
| Grade | Remanece | Coercive Force (Hcb) | Intrinsic Coercivity |
Max Energy | Curie | Coefficient TW | ||||
| Tempreture | ||||||||||
| Br | Hcj | (BH)max | TC | |||||||
| T | KGs | KA/m | KOe | KA/m | Koe | KJ/m3 | MGOe | ℃ | ℃ | |
| N33 | 1.13-1.18 | 11.3-11.8 | ≥836 | ≥10.5 | ≥955 | ≥12 | 247-263 | 31-33 | 310 | ≤80 |
| N35 | 1.18-1.23 | 11.8-12.3 | ≥868 | ≥10.9 | ≥955 | ≥12 | 263-287 | 33-36 | 310 | ≤80 |
| N38 | 1.22-1.28 | 12.2-12.8 | ≥899 | ≥11.3 | ≥955 | ≥12 | 287-310 | 36-39 | 310 | ≤80 |
| N40 | 1.26-1.31 | 12.6-13.1 | ≥923 | ≥11.6 | ≥955 | ≥12 | 302-326 | 38-41 | 310 | ≤80 |
| N42 | 1.28-1.34 | 12.8-13.4 | ≥923 | ≥11.6 | ≥955 | ≥12 | 318-342 | 40-43 | 310 | ≤80 |
| N45 | 1.33-1.38 | 13.3-13.8 | ≥923 | ≥11.6 | ≥955 | ≥12 | 342-366 | 43-46 | 310 | ≤80 |
| N48 | 1.38-1.42 | 13.8-14.2 | ≥923 | ≥11.6 | ≥955 | ≥12 | 358-390 | 45-48 | 310 | ≤80 |
| N50 | 1.40-1.45 | 14.0-14.5 | ≥836 | ≥10.5 | ≥876 | ≥11 | 382-406 | 48-51 | 310 | ≤80 |
| N52 | 1.43-1.48 | 14.3-14.8 | ≥796 | ≥10.0 | ≥876 | ≥11 | 398-422 | 50-53 | 310 | ≤80 |
| N35M | 1.17-1.22 | 11.7-12.2 | ≥868 | ≥10.9 | ≥1114 | ≥14 | 263-287 | 33-36 | 320 | ≤100 |
| N38M | 1.22-1.25 | 12.2-12.5 | ≥899 | ≥11.3 | ≥1114 | ≥14 | 287-310 | 36-39 | 320 | ≤100 |
| N40M | 1.25-1.28 | 12.5-12.8 | ≥923 | ≥11.6 | ≥1114 | ≥14 | 302-326 | 38-41 | 320 | ≤100 |
| N42M | 1.28-1.32 | 12.8-13.2 | ≥955 | ≥12.0 | ≥1114 | ≥14 | 318-342 | 40-43 | 320 | ≤100 |
| N45M | 1.32-1.38 | 13.2-13.8 | ≥995 | ≥12.5 | ≥1114 | ≥14 | 342-366 | 43-46 | 320 | ≤100 |
| N48M | 1.36-1.43 | 13.6-14.3 | ≥1027 | ≥12.9 | ≥1114 | ≥14 | 366-390 | 46-49 | 320 | ≤100 |
| N50M | 1.40-1.45 | 14.0-14.5 | ≥1033 | ≥13.0 | ≥1114 | ≥14 | 382-406 | 48-51 | 320 | ≤100 |
| N33H | 1.14-1.19 | 11.4-11.9 | ≥836 | ≥10.5 | ≥1353 | ≥17 | 247-270 | 31-34 | 330 | ≤120 |
| N35H | 1.17-1.22 | 11.7-12.2 | ≥868 | ≥10.9 | ≥1353 | ≥17 | 263-287 | 33-36 | 330 | ≤120 |
| N38H | 1.22-1.25 | 12.2-12.5 | ≥899 | ≥11.3 | ≥1353 | ≥17 | 287-310 | 36-39 | 330 | ≤120 |
| N40H | 1.25-1.28 | 12.5-12.8 | ≥923 | ≥11.6 | ≥1353 | ≥17 | 302-326 | 38-41 | 330 | ≤120 |
| N42H | 1.28-1.32 | 12.8-13.2 | ≥955 | ≥12.0 | ≥1353 | ≥17 | 318-342 | 40-43 | 330 | ≤120 |
| N45H | 1.30-1.36 | 13.0-13.6 | ≥963 | ≥12.1 | ≥1353 | ≥17 | 326-358 | 43-46 | 330 | ≤120 |
| N48H | 1.37-1.43 | 13.7-14.3 | ≥995 | ≥12.5 | ≥1353 | ≥17 | 366-390 | 46-49 | 330 | ≤120 |
| N30SH | 1.08-1.13 | 10.8-11.3 | ≥810 | ≥10.2 | ≥1592 | ≥20 | 223-247 | 28-31 | 340 | ≤150 |
| N33SH | 1.13-1.17 | 11.3-11.7 | ≥844 | ≥10.6 | ≥1592 | ≥20 | 247-271 | 31-34 | 340 | ≤150 |
| N35SH | 1.17-1.22 | 11.7-12.2 | ≥876 | ≥11.0 | ≥1592 | ≥20 | 263-287 | 33-36 | 340 | ≤150 |
| N38SH | 1.22-1.25 | 12.2-12.5 | ≥907 | ≥11.4 | ≥1592 | ≥20 | 287-310 | 36-39 | 340 | ≤150 |
| N40SH | 1.25-1.28 | 12.5-12.8 | ≥939 | ≥11.8 | ≥1592 | ≥20 | 302-326 | 38-41 | 340 | ≤150 |
| N42SH | 1.28-1.32 | 12.8-13.2 | ≥987 | ≥12.4 | ≥1592 | ≥20 | 318-342 | 40-43 | 340 | ≤150 |
| N45SH | 1.32-1.38 | 13.2-13.8 | ≥1003 | ≥12.6 | ≥1592 | ≥20 | 342-366 | 43-46 | 340 | ≤150 |
| N28UH | 1.02-1.08 | 10.2-10.8 | ≥764 | ≥9.60 | ≥1990 | ≥25 | 207-231 | 26-29 | 350 | ≤180 |
| N30UH | 1.08-1.13 | 10.8-11.3 | ≥812 | ≥10.2 | ≥1990 | ≥25 | 223-247 | 28-31 | 350 | ≤180 |
| N33UH | 1.13-1.17 | 11.3-11.7 | ≥852 | ≥10.7 | ≥1990 | ≥25 | 247-271 | 31-34 | 350 | ≤180 |
| N35UH | 1.18-1.22 | 11.8-12.2 | ≥860 | ≥10.8 | ≥1990 | ≥25 | 263-287 | 33-36 | 350 | ≤180 |
| N38UH | 1.22-1.25 | 12.2-12.5 | ≥876 | ≥11.0 | ≥1990 | ≥25 | 287-310 | 36-39 | 350 | ≤180 |
| N40UH | 1.25-1.28 | 12.5-12.8 | ≥899 | ≥11.3 | ≥1990 | ≥25 | 302-326 | 38-41 | 350 | ≤180 |
| N28EH | 1.04-1.09 | 10.4-10.9 | ≥780 | ≥9.80 | ≥2388 | ≥30 | 207-231 | 26-29 | 380 | ≤200 |
| N30EH | 1.08-1.13 | 10.8-11.3 | ≥812 | ≥10.2 | ≥2388 | ≥30 | 223-247 | 28-31 | 380 | ≤200 |
| N33EH | 1.13-1.17 | 11.3-11.7 | ≥836 | ≥10.5 | ≥2388 | ≥30 | 247-271 | 31-34 | 380 | ≤200 |
| N35EH | 1.17-1.22 | 11.7-12.2 | ≥876 | ≥11.0 | ≥2388 | ≥30 | 263-287 | 33-36 | 380 | ≤200 |
| N38EH | 1.22-1.29 | 12.2-12.9 | ≥915 | ≥11.5 | ≥2388 | ≥30 | 287-318 | 36-40 | 380 | ≤200 |
| N30AH | 1.08-1.15 | 10.8-11.5 | ≥804 | ≥10.1 | ≥2786 | ≥35 | 223-255 | 28-32 | 380 | ≤230 |
| N33AH | 1.14-1.21 | 11.4-12.1 | ≥852 | ≥10.7 | ≥2786 | ≥35 | 247-279 | 31-35 | 380 | ≤230 |
| NdFeB Surface coating: | Zinc plated | Ni-Cu-Ni plated | Silver plated | Nickel plated | Aurum plated | Epoxy coated | Phosphatsing | Parylene | other coating | |
