Product Details:
|
| Name: | Alnico5 Magnet For Packaging Machine | Shape: | Ring |
|---|---|---|---|
| Grade: | AlNiCo5 | Temprature: | 450~525℃ |
| OEM / ODM: | Provide OEM And ODM Magnet Assembly Solutions More Than 10 Years | ||
| High Light: | Packaging Machine Custom Alnico5 Magnet,525℃ Custom Alnic00000000o5 Magnet,7.3g/cm3 Alnico Ring Magnets |
||

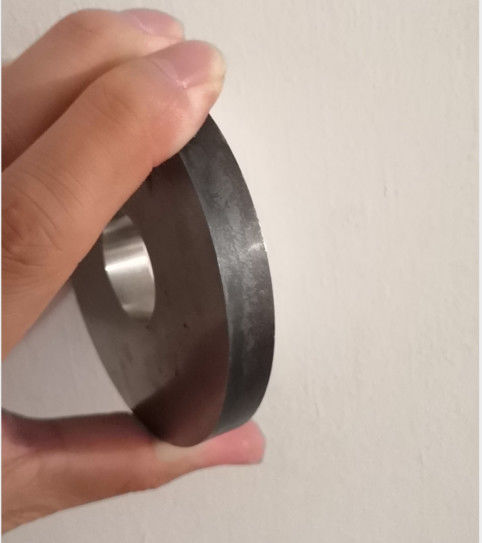

Alnico5 magnet for packaging machine , custom alnico magnets
Packaging
Packaging should be done very carefully. Parts must be wrapped in a special “clean room compatible” paper. Subsequently,
double bagging in a clean room semiconductor grade plastic bag is recommended.
The bags should be vacuum-sealed to prevent any condensates or oils from settling on the parts during shipping.
| Magnetic and Physical Properties of Cast Alnico Magnet | |||||||||||||
| Grades | Equivalent MMPA Class | Remanence | Coercive Force | Maximum Energy Product | Density | Reversible Temp. Coefficient | Reversible Temp. Coefficient | Curie Temp. | Temp. Coefficient | Remark | |||
| Br | Hcb | (BH)max | g/cm3 | α(Br) | α(Hcj) | TC | TW | ||||||
| mT | Gs | KA/m | Oe |
KJ/ m3 |
MGOe | %/℃ | %/℃ | ℃ | ℃ | ||||
| LN10 | ALNICO3 | 600 | 6000 | 40 | 500 | 10 | 1.2 | 6.9 | -0.03 | -0.02 | 810 | 450 | Isotropy |
| LNG13 | ALNICO2 | 700 | 7000 | 48 | 600 | 12.8 | 1.6 | 7.2 | -0.03 | +0.02 | 810 | 450 | |
| LNGT18 | ALNICO8 | 580 | 5800 | 100 | 1250 | 18 | 2.2 | 7.3 | -0.025 | +0.02 | 860 | 550 | |
| LNG37 | ALNICO5 | 1200 | 12000 | 48 | 600 | 37 | 4.65 | 7.3 | -0.02 | +0.02 | 850 | 525 | Anisotropy |
| LNG40 | ALNICO5 | 1250 | 12500 | 48 | 600 | 40 | 5 | 7.3 | -0.02 | +0.02 | 850 | 525 | |
| LNG44 | ALNICO5 | 1250 | 12500 | 52 | 650 | 44 | 5.5 | 7.3 | -0.02 | +0.02 | 850 | 525 | |
| LNG52 |
ALNIC05 DG |
1300 | 13000 | 56 | 700 | 52 | 6.5 | 7.3 | -0.02 | +0.02 | 850 | 525 | |
| LNG60 |
ALNICO5 -7 |
1350 | 13500 | 59 | 740 | 60 | 7.5 | 7.3 | -0.02 | +0.02 | 850 | 525 | |
| LNGT28 | ALNICO6 | 1000 | 10000 | 57.6 | 720 | 28 | 3.5 | 7.3 | -0.02 | +0.03 | 850 | 525 | |
| LNGT36J |
ALNICO8 HC |
700 | 7000 | 140 | 1750 | 36 | 4.5 | 7.3 | -0.025 | +0.02 | 860 | 550 | |
| LNGT38 | ALNICO8 | 800 | 8000 | 110 | 1380 | 38 | 4.75 | 7.3 | -0.025 | +0.02 | 860 | 550 | |
| LNGT40 | 820 | 8200 | 110 | 1380 | 40 | 5 | 7.3 | -0.025 | 860 | 550 | |||
| LNGT60 | ALNICO9 | 900 | 9000 | 110 | 1380 | 60 | 7.5 | 7.3 | -0.025 | +0.02 | 860 | 550 | |
| LNGT72 | 1050 | 10500 | 112 | 1400 | 72 | 9 | 7.3 | -0.025 | 860 | 550 | |||
Please read below information when have a alnico product order:
The Alnico Magnet contains the elements of Aluminum, Cobalt and Nickle Alloy and others, which can be made either by casting or sintering process.
As features of both hardness and high working temperature parameters, they are widely used in many different application with a wide range of magnetic properties. Meantime, an excellent corrosion resistance is also one of its features.
However, the most disadvantages point for this material is in low value of coercive force, which be possible to decrease the magnetic power during in use subject to using environment, we suggest you to discuss with us when ordering.
Below finished product for your reference!
